CCE-00501-C - Datasheet
MBA
Category Information

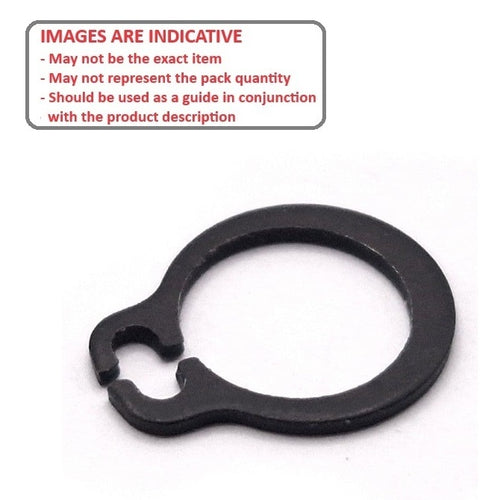

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds)
:
5.01
mm
(Equiv. 0.197 in.) - Clip Thickness (T)
0.40
mm
+/- 0.038
(Equiv. 0.016 in.) - Groove Dia. (Dg)
4.78
mm
+/- 0.051
(Equiv. 0.188 in.) - Approx. Loose Circlip ID (A) 4.60 mm
- Groove Width (W) 0.50 mm
- Standard MIL-16624
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- NoCor SH-019
- SH019
- N14000019
- N1400-0019
