Miniature Bearings Australia
CCE-00397-C - Datasheet
MBA
Category Information

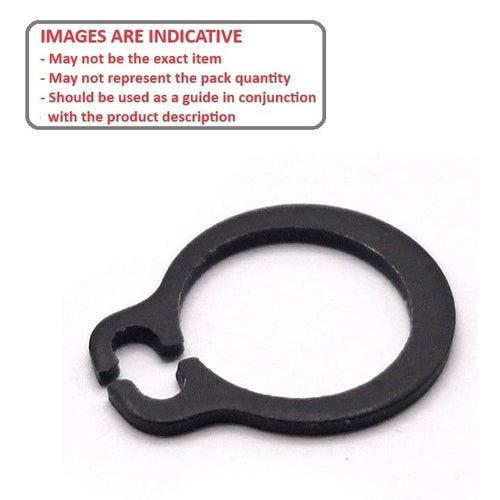

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds)
:
3.97
mm
(Equiv. 0.156 in.) - Clip Thickness (T)
0.30
mm
+/- 0.038
(Equiv. 0.012 in.) - Groove Dia. (Dg)
3.71
mm
+/- 0.025
(Equiv. 0.146 in.) - Approx. Loose Circlip ID (A) 3.60 mm
- Groove Width (W) 0.30 mm
- Standard MIL-16624
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- 97633A115
- A9Q27015
- A9Q27-015
- N14000015
- N1400-0015
