CCE-02800HA-C - Datasheet
MBA
Category Information

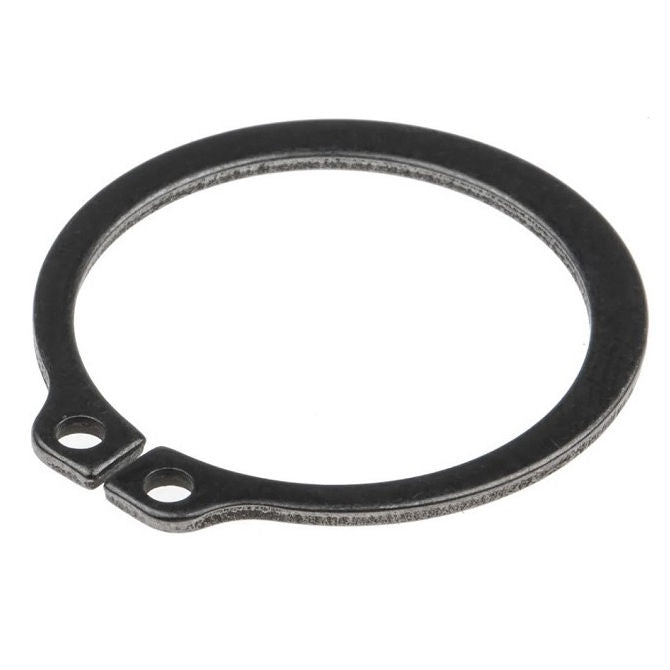

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds)
:
28.00
mm
(Equiv. 1.102 in.) - Clip Thickness (T)
2.00
mm
+ 0.00 / - 0.21
(Equiv. 0.079 in.) - Groove Dia. (Dg)
26.40
mm
+ 0.00 / - 0.07
(Equiv. 1.039 in.) - Approx. Loose Circlip ID (A) 25.50 mm
- Groove Width (W) 2.15 mm
- Standard Heavy Duty Variation DIN471 table 2
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Seeger AS-028A
- Bossard BN821-028A
- Ellison EXT-028A
- AS028A
- D1460-028A
- D1460028A
- EXT028A
- BN821028A
