CCE-08255-C-V - Datasheet
MBA
Category Information

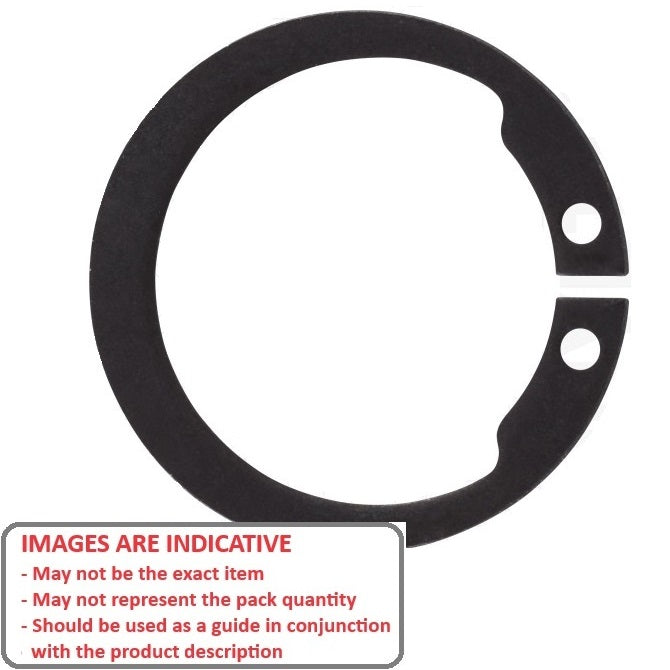

Retaining Rings - External - Circlips - InvertedInverted Circlips External Retaining Rings. N1408 / SHI / 16626 / 4100 / 5108 - Spring Steel and Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.

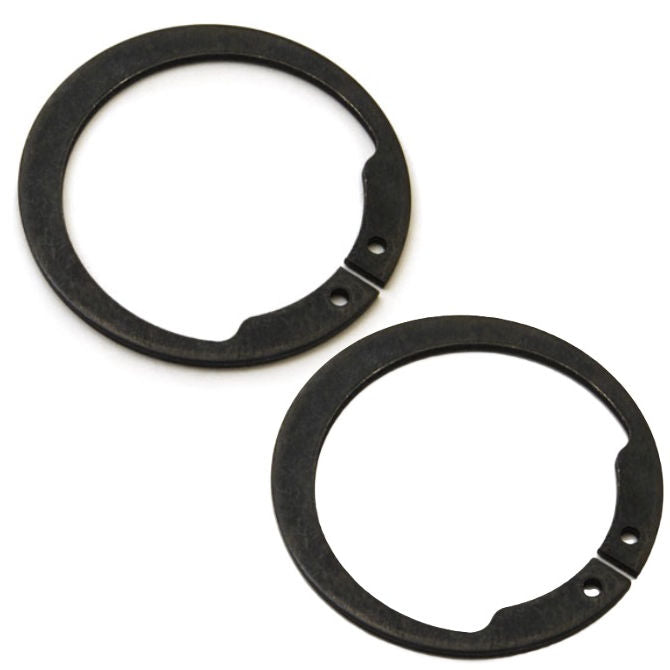

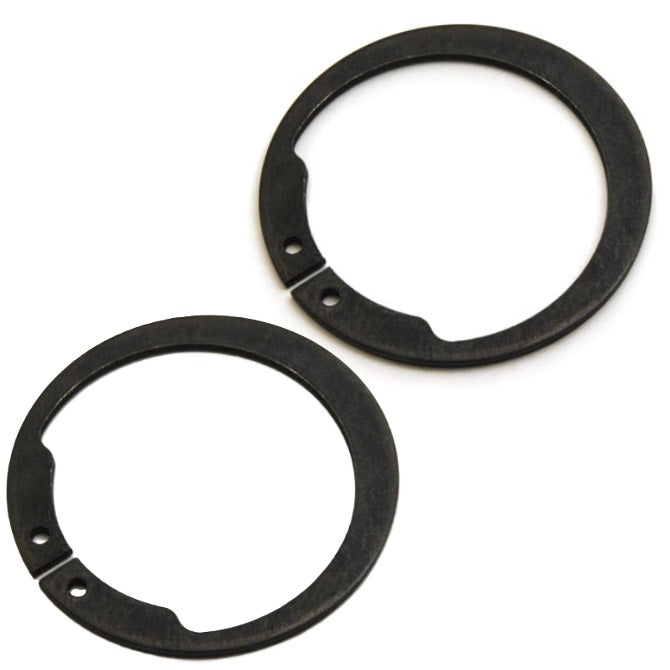

- Tapered section ring with lugs inverted on the ID to allow use in tight areas with minimal clearance.
- Less thrust load than standard circlips.

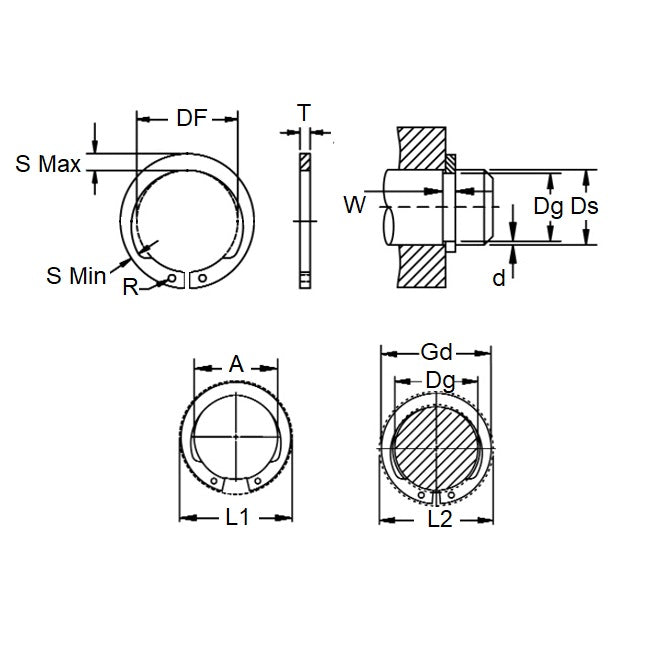

Product Data
- Shaft Diameter (Ds)
:
82.55
mm
(Equiv. 3.25 in.) - Clip Thickness (T)
1.98
mm
+/- 0.152
(Equiv. 0.078 in.) - Groove Dia. (Dg)
78.13
mm
+/- 0.076
(Equiv. 3.076 in.) - Approx. Loose Circlip ID (A) 76.35 mm
- Radial Wall (S) min/max 4.11 mm
- Groove Width (W) 2.62 mm + 0.13 / - 0.00
- Tool PRS-E115
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor SHI-325
- SHI325
- N1408-0325
- N14080325
