CCE-08200-C-V - Datasheet
MBA
Category Information

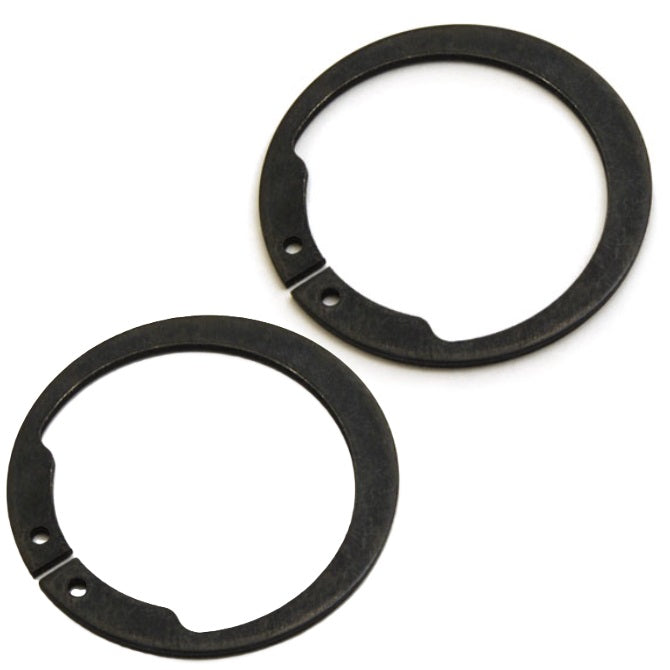

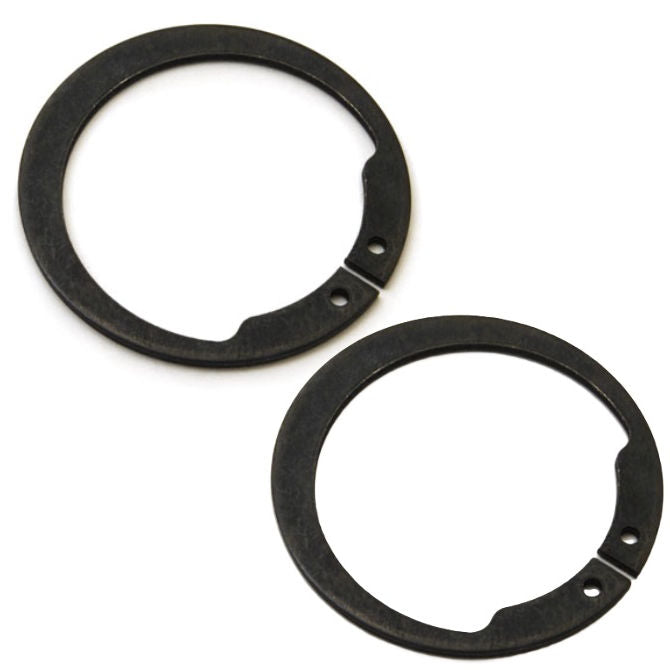

Retaining Rings - External - Circlips - InvertedInverted Circlips External Retaining Rings. N1408 / SHI / 16626 / 4100 / 5108 - Spring Steel and Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Tapered section ring with lugs inverted on the ID to allow use in tight areas with minimal clearance.
- Less thrust load than standard circlips.
Product Data
- Shaft Diameter (Ds)
:
82.00
mm
(Equiv. 3.228 in.) - Clip Thickness (T)
2.50
mm
+ 0.00 / - 0.35
(Equiv. 0.098 in.) - Groove Dia. (Dg)
78.50
mm
+ 0.00 / - 0.07
(Equiv. 3.091 in.) - Approx. Loose Circlip ID (A) 76.50 mm
- Radial Wall (S) min/max 7.00 mm
- Groove Width (W) 2.65 mm
- Tool PRS-E023
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DSHI-082
- DSHI082
- M1408-0820
- M14080820
