CCE-03400-C-V - Datasheet
MBA
Category Information

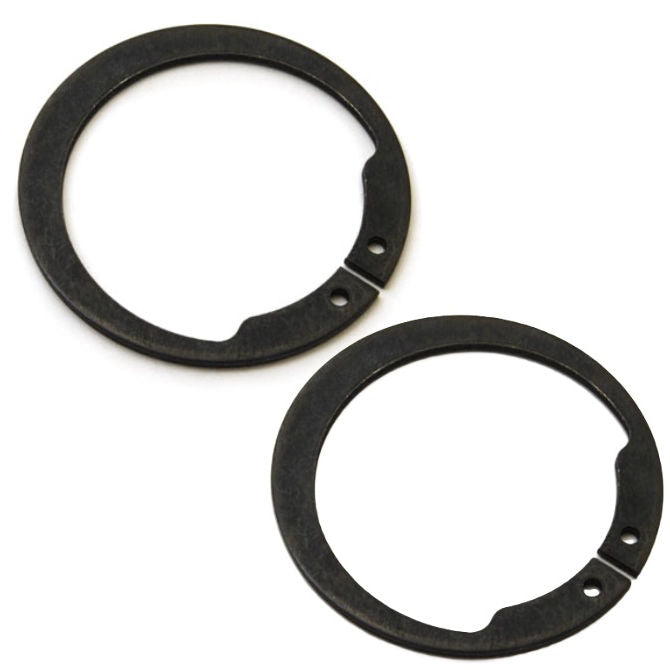

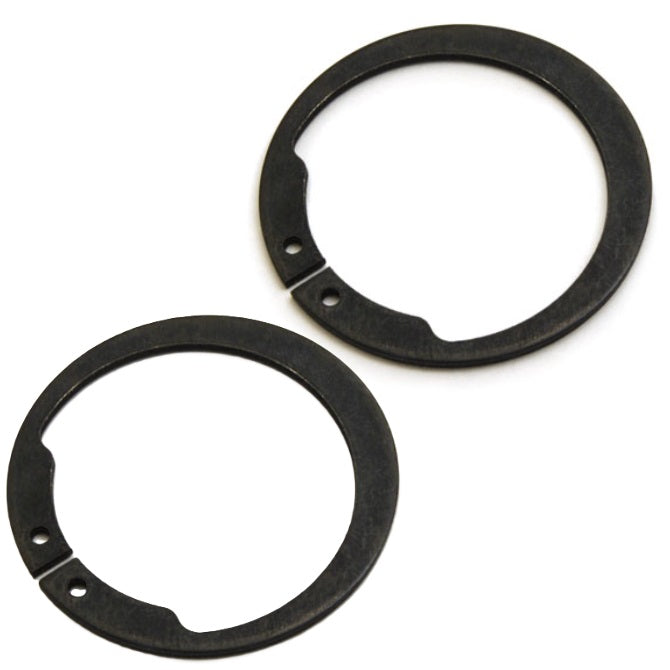

Retaining Rings - External - Circlips - InvertedInverted Circlips External Retaining Rings. N1408 / SHI / 16626 / 4100 / 5108 - Spring Steel and Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Tapered section ring with lugs inverted on the ID to allow use in tight areas with minimal clearance.
- Less thrust load than standard circlips.
Product Data
- Shaft Diameter (Ds)
:
34.00
mm
(Equiv. 1.339 in.) - Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.25
(Equiv. 0.059 in.) - Groove Dia. (Dg)
32.30
mm
+ 0.00 / - 0.06
(Equiv. 1.272 in.) - Approx. Loose Circlip ID (A) 31.50 mm
- Radial Wall (S) min/max 3.50 mm
- Groove Width (W) 1.60 mm
- Tool PRS-E018
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DSHI-034
- DSHI034
- M14080340
- M1408-0340
