Retaining Rings - External - Circlips - InvertedInverted Circlips External Retaining Rings. N1408 / SHI / 16626 / 4100 / 5108 - Spring Steel and Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.

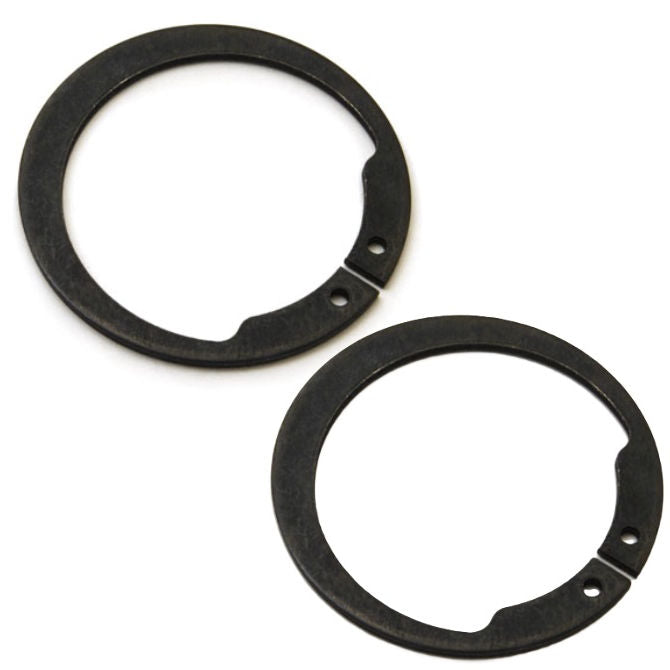

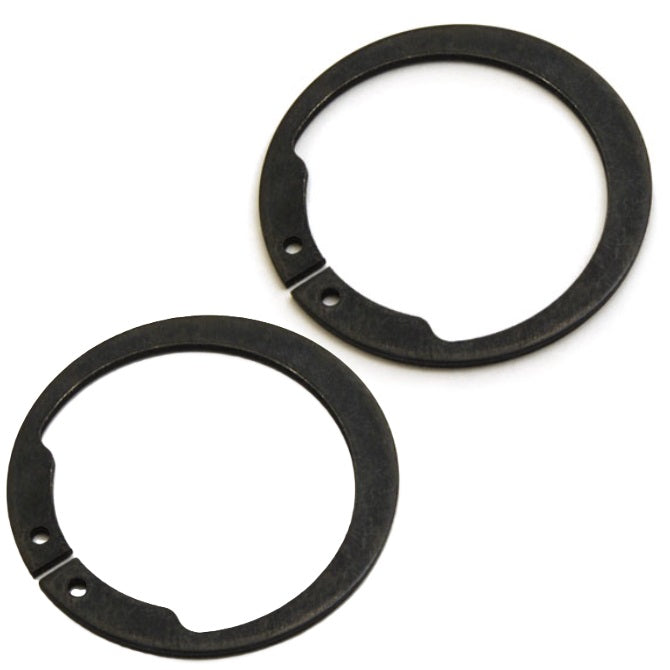

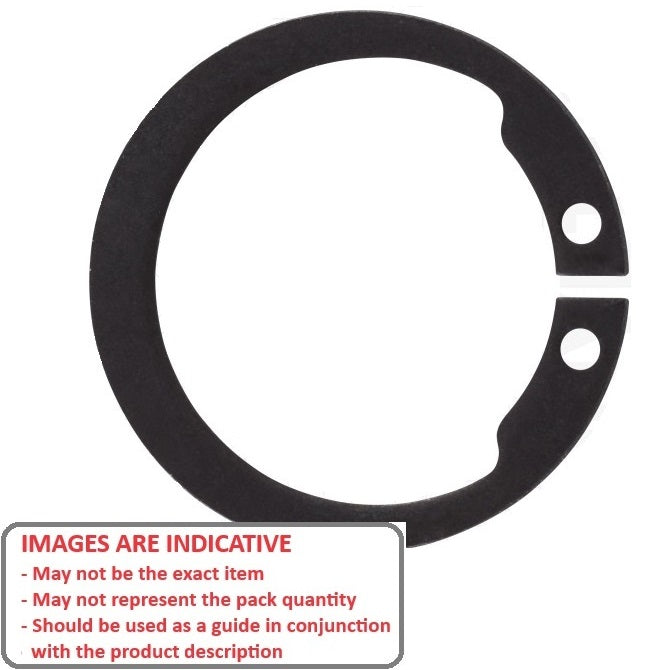

- Tapered section ring with lugs inverted on the ID to allow use in tight areas with minimal clearance.
- Less thrust load than standard circlips.

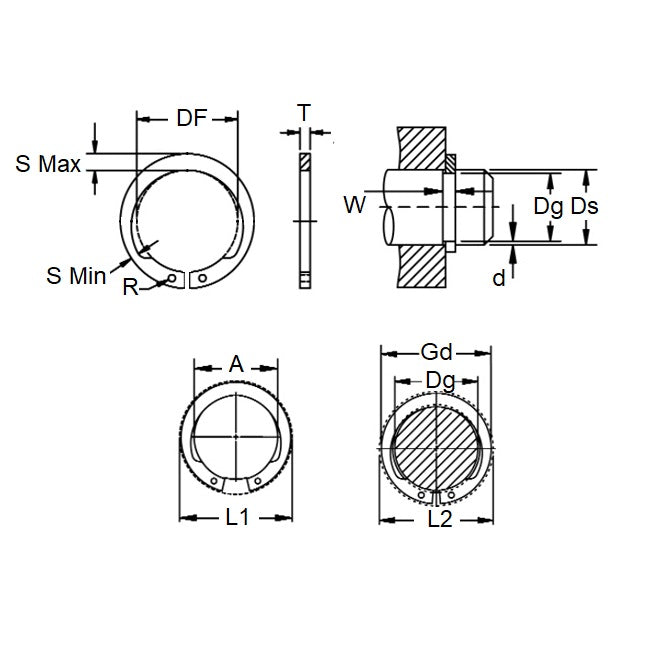

Product Data
- Shaft Diameter (Ds)
:
100.00
mm
(Equiv. 3.937 in.) - Clip Thickness (T)
3.00
mm
+ 0.00 / - 0.35
(Equiv. 0.118 in.) - Groove Dia. (Dg)
96.50
mm
+ 0.00 / - 0.08
(Equiv. 3.799 in.) - Approx. Loose Circlip ID (A) 94.50 mm
- Radial Wall (S) min/max 8.00 mm
- Groove Width (W) 3.15 mm
- Tool PRS-E032
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DSHI-100
- DSHI100
- M14081000
- M1408-1000
