CEB-09843-C - Datasheet
MBA
Category Information

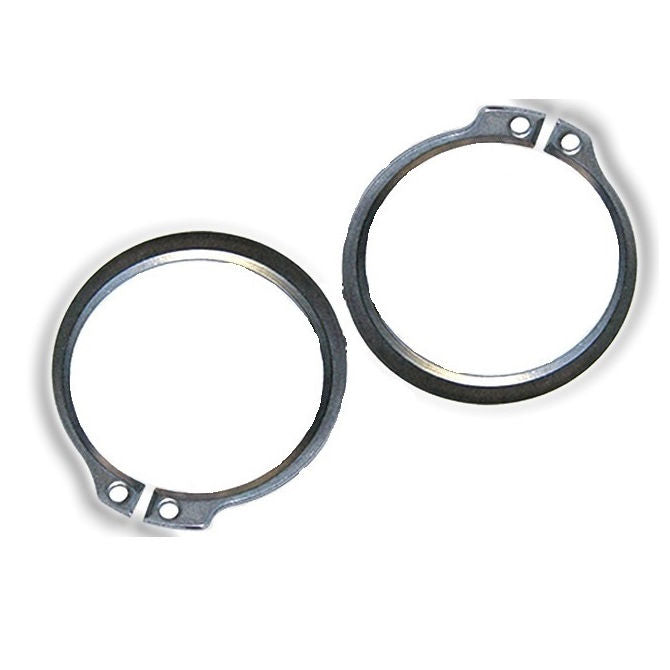

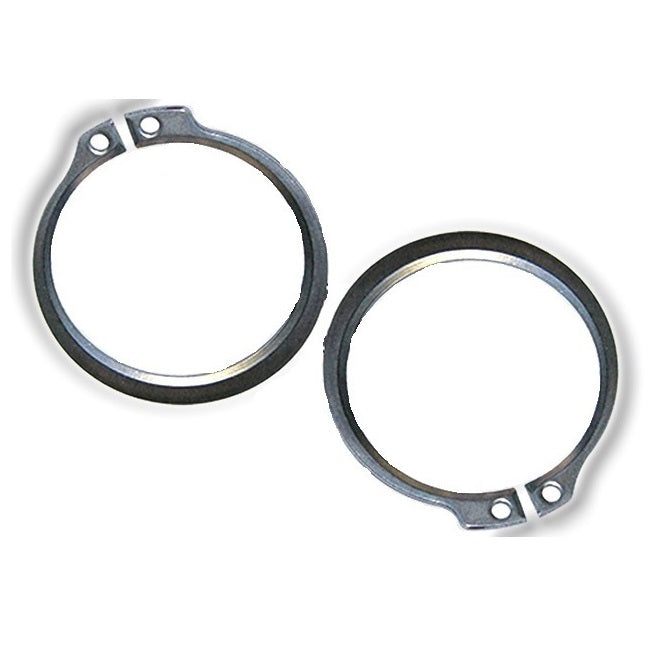

Retaining Rings - External - Circlips - BevelledBevelled Circlips External Retaining Rings. N1402 / VSH / 5102 / 16630. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- A 15 Deg. bevel on the inside diameter to be fitted to a 15% bevel on the load bearing groove wall.
- Will yield rigid end-play take-up of manufacturing tolerances or wear on the retained part.
- Used in greasy or oily environments.
Product Data
- Shaft Diameter (Ds)
:
98.43
mm
(Equiv. 3.875 in.) - Clip Thickness (T)
2.77
mm
+ 0.00 / - 0.15
(Equiv. 0.109 in.) - Groove Dia. (Dg)
91.54
mm
+/- 0.08
(Equiv. 3.604 in.) - Approx. Loose Circlip ID (A) 89.15 mm + 1.27 / - 0.00
- Radial Wall (S) min/max 4.14 - 8.08 mm
- Groove Width (W) 2.26 mm + 0.08 / - 0.00
- Tool PRR-E120-X
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- NoCor VSH-387
- VSH387
- N14020387
- N1402-0387
