CEB-08731-C - Datasheet
MBA
Category Information

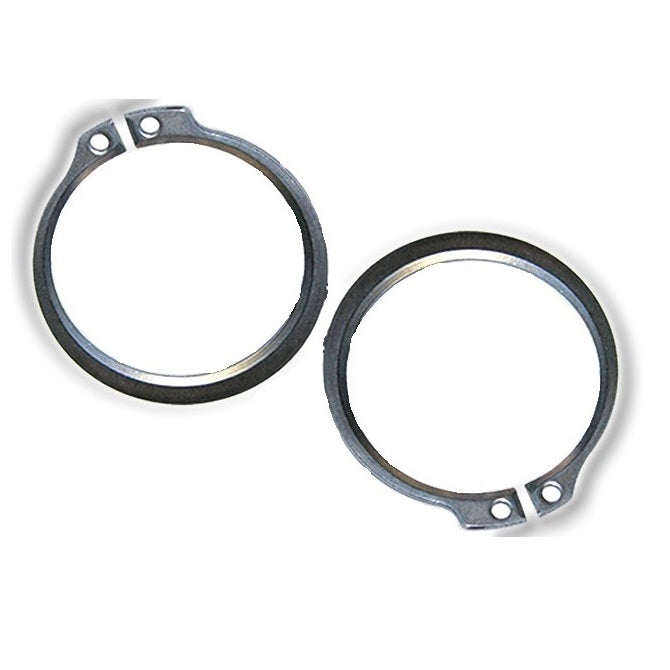

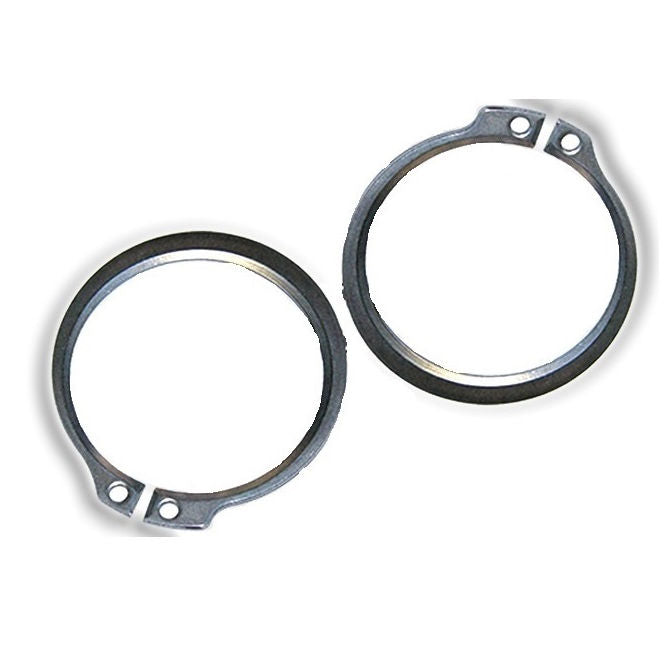

Retaining Rings - External - Circlips - BevelledBevelled Circlips External Retaining Rings. N1402 / VSH / 5102 / 16630. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- A 15 Deg. bevel on the inside diameter to be fitted to a 15% bevel on the load bearing groove wall.
- Will yield rigid end-play take-up of manufacturing tolerances or wear on the retained part.
- Used in greasy or oily environments.
Product Data
- Shaft Diameter (Ds)
:
87.31
mm
(Equiv. 3.437 in.) - Clip Thickness (T)
2.77
mm
+ 0.00 / - 0.15
(Equiv. 0.109 in.) - Groove Dia. (Dg)
81.25
mm
+/- 0.08
(Equiv. 3.199 in.) - Approx. Loose Circlip ID (A) 79.98 mm + 1.27 / - 0.00
- Radial Wall (S) min/max 3.76 - 7.42 mm
- Groove Width (W) 1.91 mm + 0.06 / - 0.00
- Tool PRS-E115
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- NoCor VSH-343
- VSH343
- N14020343
- N1402-0343
