GE-03000-04700-W300 - Datasheet
Iglidur
Category Information

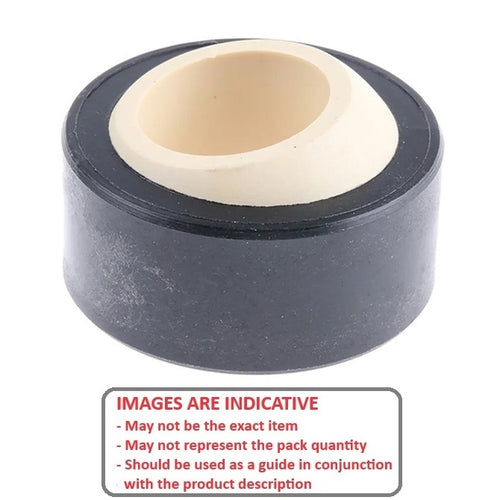

Bushings - Spherical - PlasticPlastic Spherical Bushings. Plastic spherical plain bearings. Also known as ball bushings.
- Ball Material W300. Housing Iglidur G.
- Maintenance Free. Self lubricating.
- Compensates for axial loads and misalignment.
- Corrosion resistant.
- High vibration dampening capacity.
Product Data

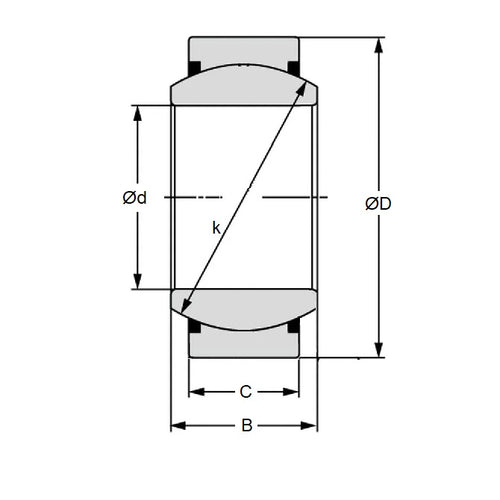

- Bore (d1)
:
30.000
mm
+ 0.040 / + 0.124
(Equiv. 1.181 in.) - OD (d2)
47.000
mm
(Equiv. 1.85 in.) - Width (B)
22.000
mm
(Equiv. 0.866 in.) - Outer Width (C) 18.00 mm
- Max Pivot angle 13 Deg.
- Max Torque 70.0 Nm
- Max Static Comp. str. (Radial) 11000 N
- Max Static Comp. str. (Axial) 2500 N
- Material W300 Plastic
Product Compliance and Data
Additional Resources
Cross References
- Igus EGLM-30
- EGLM30
- IG-EGLM-30-Igus-Refer-Scott
- IGEGLM30IgusReferScott
