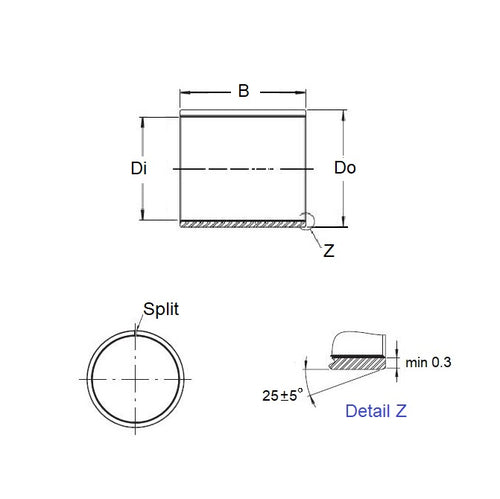

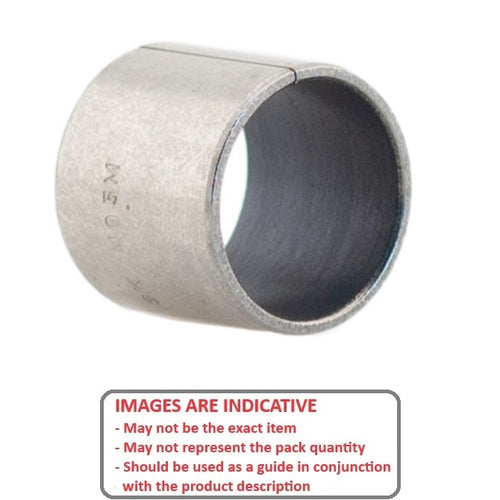

DU Steel Split Unflanged Bushes. Composite bearing material conisting of 3 bonded layers; Steel backing bonded with porous sintered bronze interlayer which is impregnated and overlaid with polytetrafluroethylene (PTFE). Lead free.

• An expanded range may be available on special order. Please enquire.
• Operating Temperature -200^o to 280^o Celsius. Maximum load 250N/mm2.
• Requires No lubrication, provides maintenance free operation. Exhibits low wear rate, Seizure resistant.
• High Static and Dynamic Load capacity, Good frictional properties with negligible stick-slip. Resists Solvents, Compact and light.
• No water Absorption, Electrically conductive and shows no electrostatic effects, Good embedability and is tolerant of dusty environments.
• Good embedability and is tolerant of dusty environments. Speed Limit in oil 5 metres surface speed per second.
