BLB-03175-01800-SUJ - Datasheet
ENQUIRE
Category Information

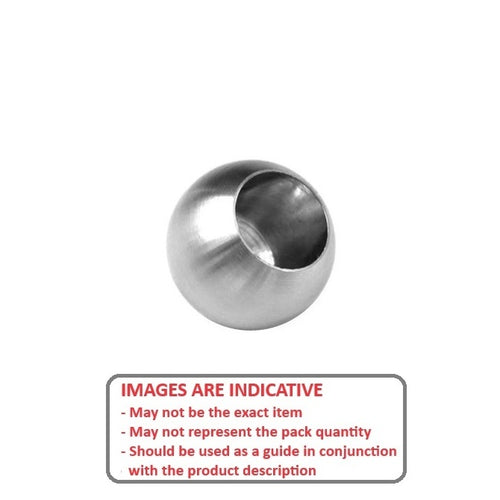

Balls - Bored - SteelSteel Bored Balls. Similr to the style used in steel rod ends.
- These bored balls are similar to the style of ball often found in a rod end or a spherical plain bearing.
- Used in machinery for applications such as pivots, in industries that include food processing, medical supplies, and general parts production.
- Hardness: 58-64 Rc.
- Material: SUJ-2.
Product Data
- Diameter (D) : 31.750 mm
- Bore (B)
18.000
mm
+ 0.018 / - 0.0
(Equiv. 0.709 in.) - Width (W) 23.000 mm
- Flat Diameter (d1) 21.890 mm
- Chamfer (C) 0.8X45 mm
- Material Chrome Steel
Product Compliance and Data
Additional Resources
Cross References
- MTR GR-18
- IJK SS-18
- KWK SS-18
- SS18
- GR18
