BLB-01905-01000-SUJ - Datasheet
MBA
Category Information

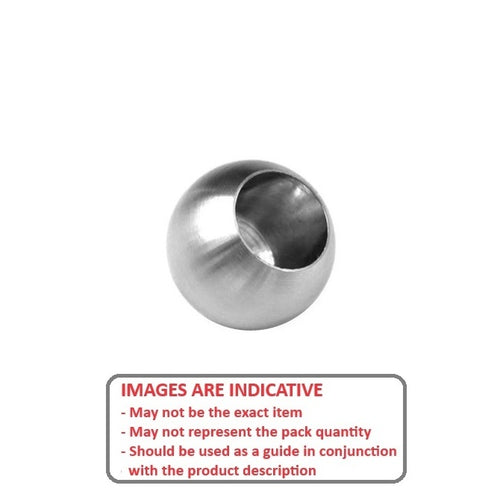

Balls - Bored - SteelSteel Bored Balls. Similr to the style used in steel rod ends.
- These bored balls are similar to the style of ball often found in a rod end or a spherical plain bearing.
- Used in machinery for applications such as pivots, in industries that include food processing, medical supplies, and general parts production.
- Hardness: 58-64 Rc.
- Material: SUJ-2.
Product Data
- Diameter (D)
:
19.050
mm
(Equiv. 0.75 in.) - Bore (B)
10.000
mm
+ 0.015 / - 0.0
(Equiv. 0.394 in.) - Width (W)
14.000
mm
(Equiv. 0.551 in.) - Flat Diameter (d1) 12.920 mm
- Chamfer (C) 0.5X45 mm
- Material Chrome Steel
Product Compliance and Data
Additional Resources
Cross References
- MTR GR-10
- IJK SS-10
- KWK SS-10
- SS10
- GR10
