Miniature Bearings Australia
BLB-01588-00800-SUJ - Datasheet
MBA
Category Information

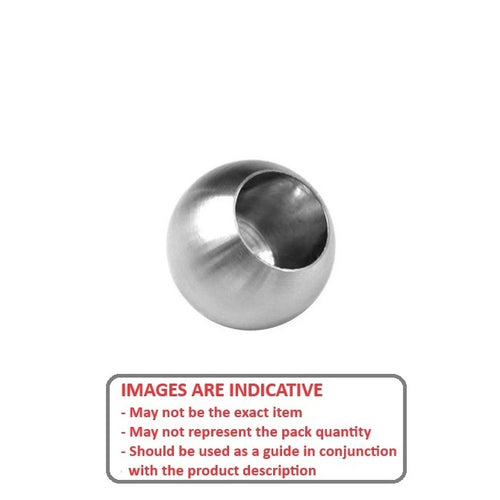

Balls - Bored - SteelSteel Bored Balls. Similr to the style used in steel rod ends.
- These bored balls are similar to the style of ball often found in a rod end or a spherical plain bearing.
- Used in machinery for applications such as pivots, in industries that include food processing, medical supplies, and general parts production.
- Hardness: 58-64 Rc.
- Material: SUJ-2.
Product Data
- Diameter (D)
:
15.875
mm
(Equiv. 0.625 in.) - Bore (B)
8.000
mm
+ 0.015 / - 0.0
(Equiv. 0.315 in.) - Width (W)
12.000
mm
(Equiv. 0.472 in.) - Flat Diameter (d1) 10.390 mm
- Chamfer (C) 0.5X45 mm
- Material Chrome Steel
Product Compliance and Data
Additional Resources
Cross References
- MTR GR-8
- IJK SS-8
- KWK SS-8
- SS8
- GR8
