Miniature Bearings Australia
CCE-00900-S15 - Datasheet
MBA
Category Information

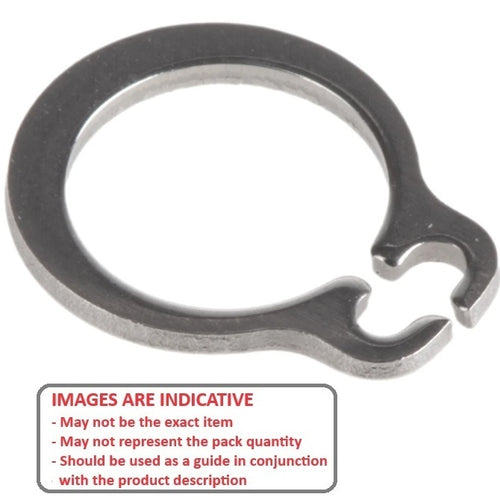

Retaining Rings - External - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
Product Data
- Shaft Diameter (Ds)
:
9.00
mm
(Equiv. 0.354 in.) - Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.06
(Equiv. 0.039 in.) - Groove Dia. (Dg)
8.60
mm
+ 0.00 / - 0.06
(Equiv. 0.339 in.) - Approx. Loose Circlip ID (A) 8.40 mm
- Groove Width (W) 1.10 mm
- Clearance on Shaft (C1) 16.00 mm
- Clearance in Groove (C1) 15.20 mm
- Min. Lug Diameter (h) 1.20 mm
- Min. Extension (n) 0.60
- Standard DIN471
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison 471-009-SS
- 90967A155
- Seeger A-009-SS
- Seeger A9K500-BLS
- Seeger A9S-S
- Seeger A9X1-411
- Seeger A9X1SS
- Bossard BN818-009-SS
- Waldes D1400-009-SS
- NoCor DSH-009-SS
- Rotor Clip DSH-009-SS
- Seeger NZT.A9S-S
- DSH009SS
- 14000090KSF
- 1400-0090KSF
- D14000090KSF
- D1400-0090KSF
- D1400009SS
- A9K500BLS
- A9X1411
- A9SS
- A009SS
- NZTA9SS
- 471009SS
- BN818009SS
