CCE-00900-C - Datasheet
MBA
Category Information

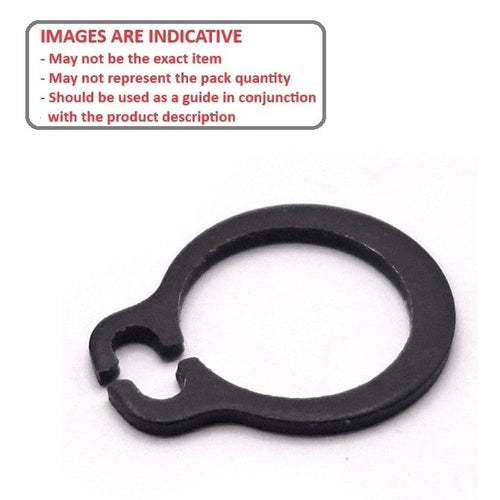

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds)
:
9.00
mm
(Equiv. 0.354 in.) - Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.06
(Equiv. 0.039 in.) - Groove Dia. (Dg)
8.60
mm
+ 0.00 / - 0.06
(Equiv. 0.339 in.) - Approx. Loose Circlip ID (A) 8.40 mm
- Groove Width (W) 1.10 mm
- Clearance on Shaft (C1) 16.00 mm
- Clearance in Groove (C1) 15.20 mm
- Min. Lug Diameter (h) 1.20 mm
- Min. Extension (n) 0.60
- Standard DIN471
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison 471-009
- 98541A117
- Seeger A-009
- Seeger A9
- Seeger A9-BLS
- Seeger A9X1
- Bossard BN818-009
- Waldes D1400-009
- NoCor DSH-009
- Rotor Clip DSH-009
- Seeger NZT.A9
- MD0471MQB009
- DSH009
- CCE00900C
- 14000090
- 1400-0090
- D14000090
- D1400-0090
- A9BLS
- A009
- 471009
- BN818009
