MLM-254C-108-CGC - Datasheet
MBA
Category Information

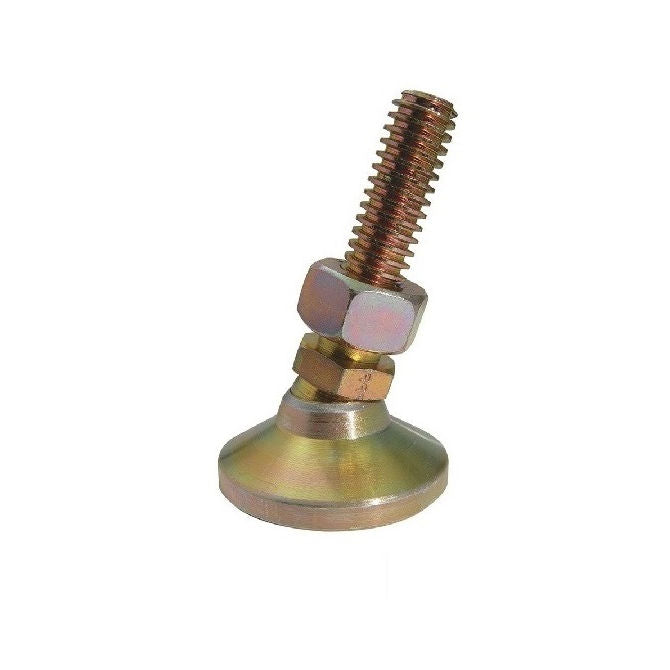

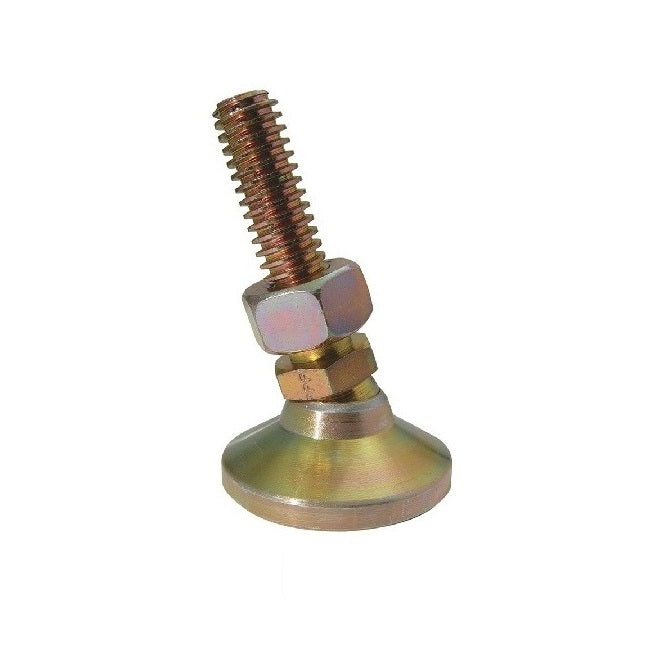

Mounts - Levelling Studded - Standard - Gold ChromateGold Chromate Standard Levelling Studded Mounts. Levelling adjusters. For levelling machine tools, electronic racks, benches etc on uneven surfaces.
- An expanded range may be available on special order. Please enquire.
- Load is distributed over 120o of full radial contact rather than a single radial contact point, providing greater weight distribution between the ball and pad.
- Zinc plated steel with case hardened ball.
Product Data
- Thread Size (A) : 1-8 UNC (25.4mm)
- Base Diameter (D)
101.6
mm
(Equiv. 4 in.) - Foot Height (C)
47.6
mm
(Equiv. 1.874 in.) - Thread Length (F) 108.0 mm
- Base Height (E) 10.32 mm
- Overall Height 155.6 mm
- Load Rating 9980 Kg
- Finish Gold Chromate
- Hex Flats (B) 34.925 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- RSL7
- RSL-7
- MLM9980254CG
- HVTL-5
- HVTL5
