RS-375 - Datasheet

MBA

Category Information

Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel

Carbon Steel Medium Duty Spiral Rings External Retaining Rings. AE / WS / AS3218 / RS / MIL-R-27426A1 - Spring Steel

  • An expanded range may be available on special order. Please enquire.
  • Popular series that will accommodate light and medium bearing series thrust loads.
  • Available in military and aerospace specifications.
  • Equivalent to Associated Spring: AE, Smalley: WS, Spirolox and Ramsey: RS, Aerospace AS3218, MIL-R-27426A1

Product Data

  • Shaft Diameter (Ds) : 95.25 mm
    (Equiv. 3.75 in.)
  • Clip Thickness (T) 1.55 mm +/- 0.08
    (Equiv. 0.061 in.)
  • Groove Dia. (Dg) 92.41 mm
    (Equiv. 3.638 in.)
  • Approx. Loose Circlip ID (A) 89.54 mm + 0.00 / - 1.02
  • Radial Wall (S) min/max 5.03 mm +/- 0.13
  • Groove Width (W) 1.79 mm +/- 0.16
  • Approx. Loose Clip OD 99.6 +/- 0.06
  • Groove Depth (d) 1.42
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Smalley RS-375
  • Spirolox RS-375
  • Smalley WS-375
  • WS375
  • RS375
View full details

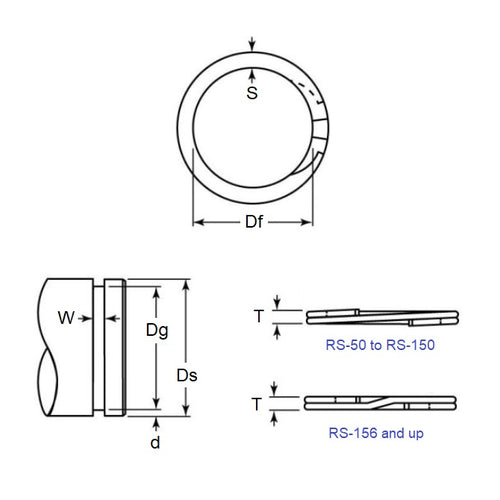

RS-375DiagramRS-375Image
