YE-18RS - Datasheet
MBA
Category Information
Yoke Ends - BlankBlank Yoke Ends. Linkage connectors with blank ends - no hole.
- A yoke end, also known as a clevis end, is a U-shaped metal fastener used to connect rods, cables, or pipes to a mounting point.
- It's commonly used in lifting, rigging, and other applications where secure attachment and articulation are needed.
- Yoke ends require a clevis pin and cotter pin for secure attachment.
- Drop forged steel machined to SAE standards
- Also see clevis joints
Product Data

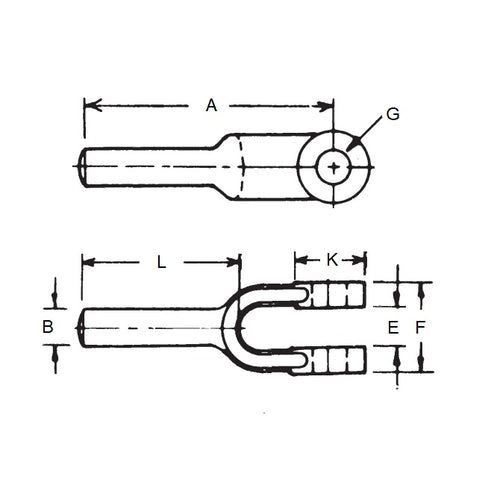

- Effective Length (A)
:
92.080
mm
(Equiv. 3.625 in.) - Hub Diameter (B)
19.050
mm
(Equiv. 0.75 in.) - Gap (E) +/- 0.38
20.640
mm
(Equiv. 0.813 in.) - Width (F) +/- 0.38 20.64 mm
- Hole Size (G) +0.25 19.05 mm
- Stud Height (L) 38 mm
- Housing Diameter (K) 37 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 6414K18
