CCI-09000-CZ - Datasheet

MBA

Category Information

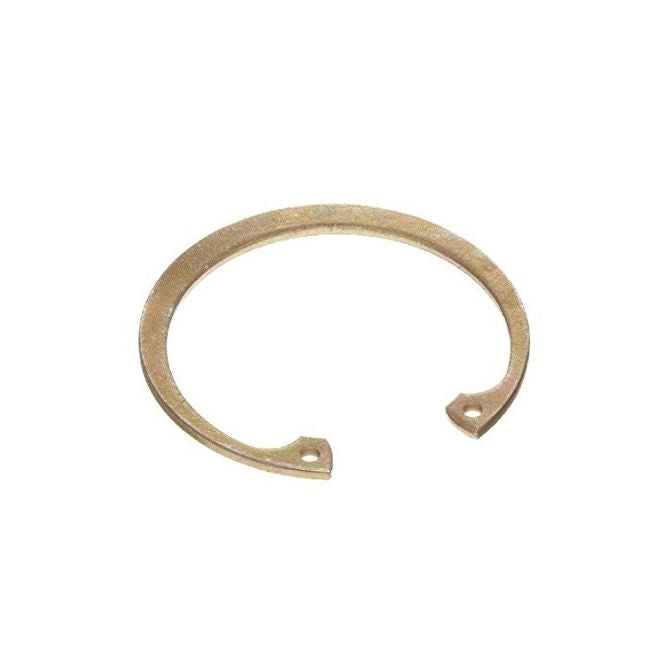

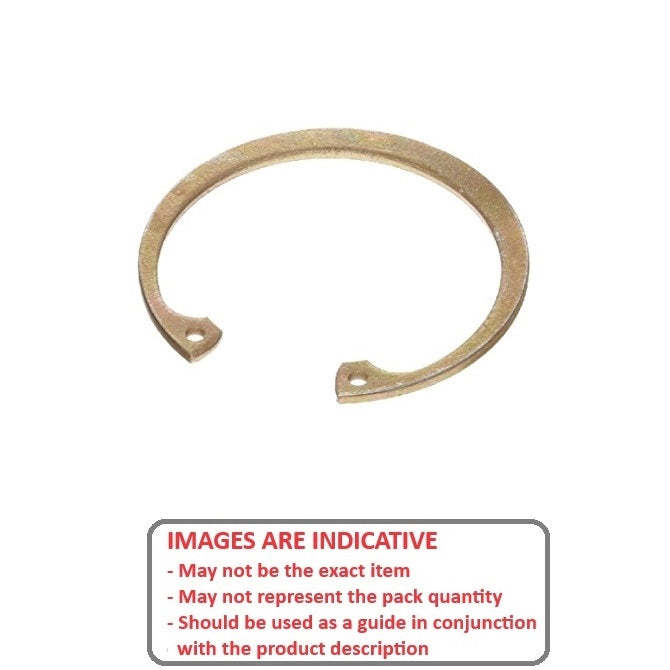

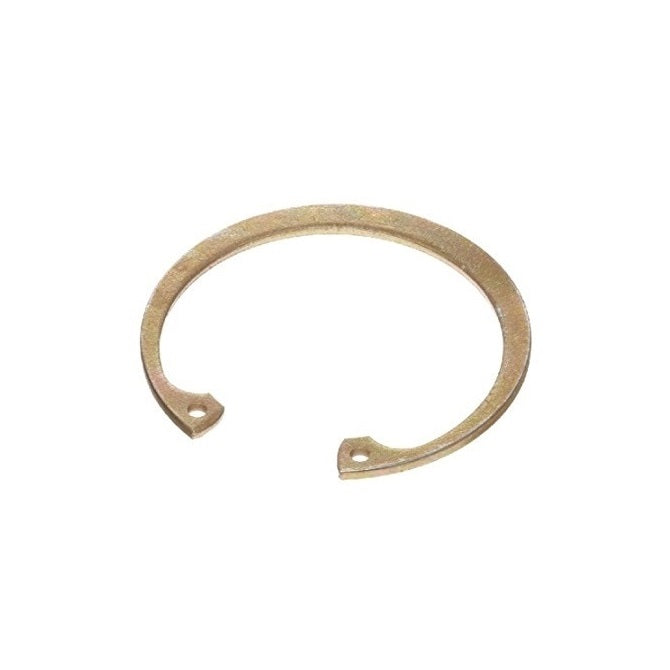

Retaining Rings - Internal - Circlips - Standard - Zinc Plated

Zinc Plated Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
Zinc plated carbon steel
Tolerances on request.

Product Data

Housing Bore (B) : 90.00 mm
(Equiv. 3.543 in.)
Clip Thickness (T) 3.00 mm _{+ 0.35 / - 0.00}
(Equiv. 0.118 in.)
Groove Dia. (Dg) 93.50 mm _{+ 0.00 / - 0.08}
(Equiv. 3.681 in.)
Approx. Loose Circlip OD (Dr) 95.50 mm + 1.30 / - 0.54
Groove Width (W) 3.15 mm + 0.13 / - 0.00
Clearance in Bore (C) 71.90 mm
Clearance in Groove (C1) 76.30 mm
Min. Lug Diameter (h) 3.50 mm
Min. Extension (n) 5.30
Standard DIN472
Material Carbon Steel Zinc Plated

Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

Ellison 472-090-ZC
Bossard BN-822-090-ZC
Waldes D1300-090-ZC
NoCor DHO-090-ZC
Rotor Clip DHO-090-ZC
Seeger J-090-ZC
D1300090ZC
J090ZC
DHO090ZC
472090ZC
BN822090ZC
