LYP-Q2-095-057-S4 - Datasheet

MBA

Product Data

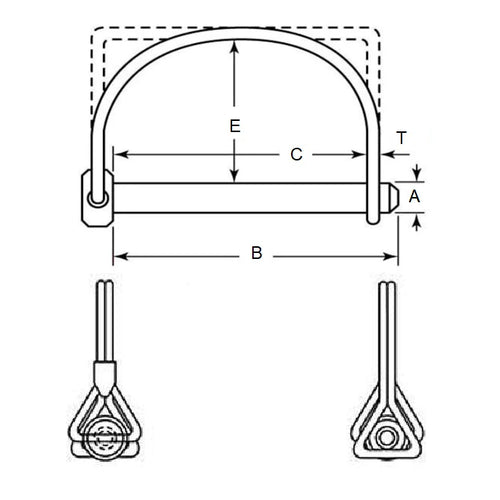

• Pin Diameter (A) : 9.53 mm _{- 0.051 / - 0.178}
  (Equiv. 0.375 in.)
• Grip Length (C) 57.15 mm _{+ 0.00 / - 6.35}
  (Equiv. 2.25 in.)
• Wire Thickness (T) 2.3 mm
  (Equiv. 0.091 in.)
• Clearance To Wire (E) 38.1 mm
• Pin Length (B) 63.5 mm
• Weight Per Piece 57 g
• Finish Passivated
• Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Master Pins Catalogue PDF


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• NoCor SNAPS-375-2250S
• SNAPS3752250S
