BLP-095-0413-CZ - Datasheet
MBA
Category Information

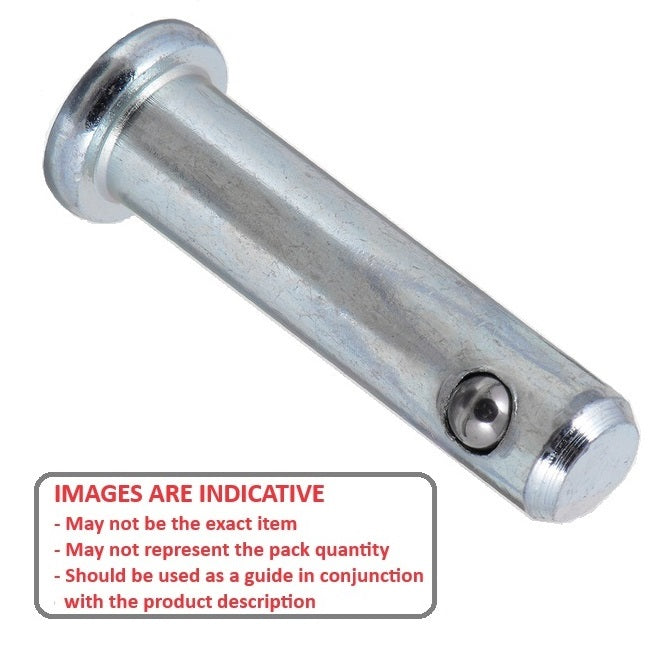

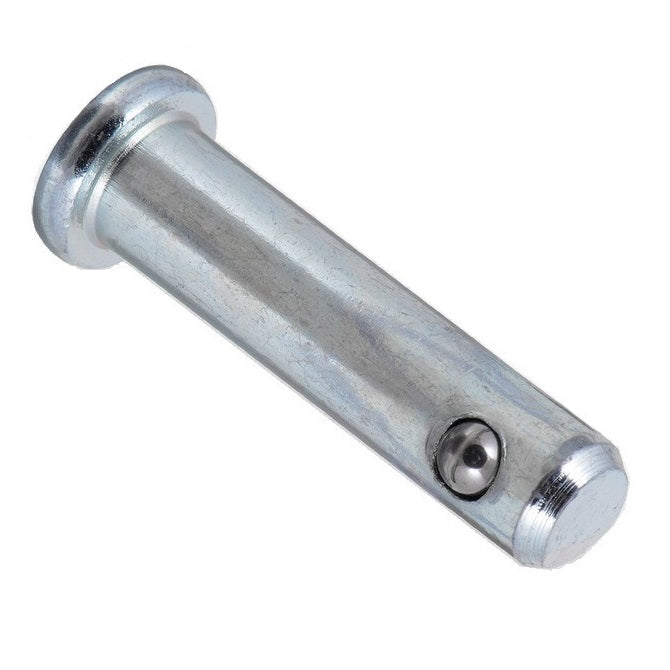

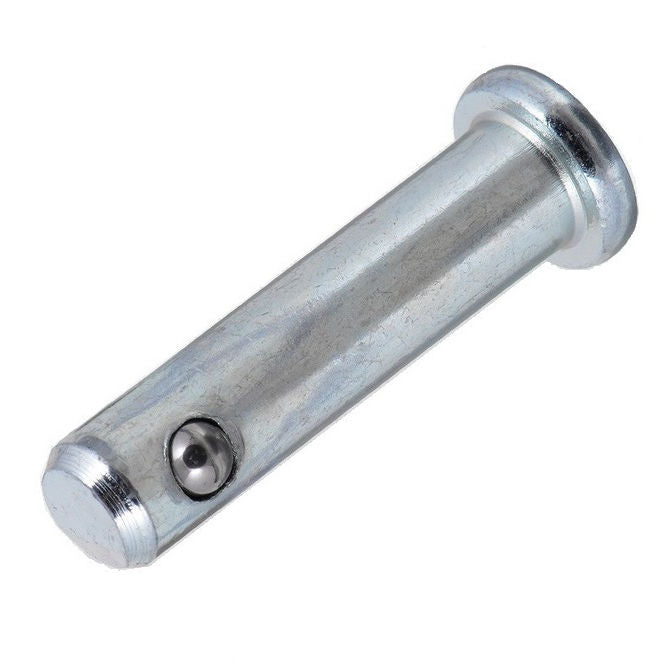

Pins - Clevis - Self Locking Zinc PlatedSelf Locking Zinc Plated Clevis Pins. Inexpensive ball lock pin type. No need for cotter pins.
- Self locking and reusable with a spring loaded ball lock
- Zinc plated low carbon steel with stainless steel ball
Product Data

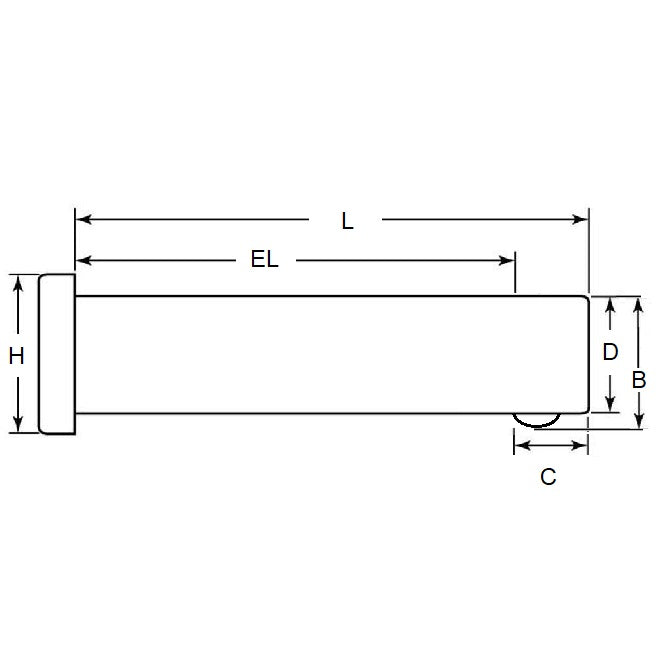

- Nominal Pin Diameter (A)
:
9.53
mm
- 0.05 / - 0.18
(Equiv. 0.375 in.) - Grip Length (EL)
41.28
mm
+ 0.51 / - 0.00
(Equiv. 1.625 in.) - Nom. Length (L)
50.80
mm
+ 0.51 / - 0.00
(Equiv. 2 in.) - Locking Ball to End (C) 9.53 mm
- Open Ball Distance (B) 0.76 to 1.0 mm
- Material Zinc Plated Low Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 90156A277
- NoCor CLPCZ-0375-2000
- CLP1224
- CLP-1224
- CLPCZ03752000
- BLP0950413Z
