CS-0953-0191-08-Z - Datasheet
MBA
Category Information

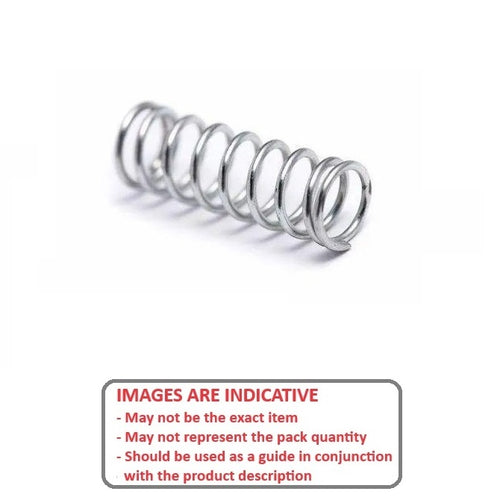

Springs - Compression - Music WireMusic Wire Compression Springs. Carbon spring steel selection. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Spring OD (D0)
:
9.53
mm
+/- 0.203
(Equiv. 0.375 in.) - Free Length (L0)
19.1
mm
+/- 0.64
(Equiv. 0.752 in.) - Wire Diameter (d)
0.80
mm
+/- 0.015
(Equiv. 0.031 in.) - Approx. ID 7.9 mm
- End Type Open
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Century C-566
- C566
