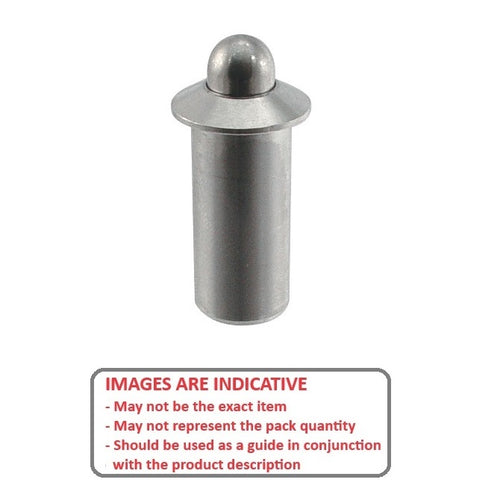

PLSP-095-200-S3-031 - Datasheet

MBA

Product Data

• Body Diameter (A) : 9.53 mm _{+ 0.1 / - 0.0}
  (Equiv. 0.375 in.)
• Body Length (B) 20.0 mm
  (Equiv. 0.787 in.)
• Initial Pressure (F1) 11.1 N
• Final Pressure (F2) 31.1 N
• Tip Diameter (D) 5.9 mm
• Tip Length (C) 4.8 mm
• Drive Push Fit
• Material Stainless Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Threaded Ball Plungers

• Push Fit Ball Plungers


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• 8682A63
• SPFP57
• SPFP-57
