LYP-Q1-095-064-CZ - Datasheet
MBA
Category Information
Pins - Wire Lock Lynch - Single Wire - Square Carbon SteelSquare Carbon Steel Single Wire Wire Lock Lynch Pins. Also known as snapper pins
Product Data

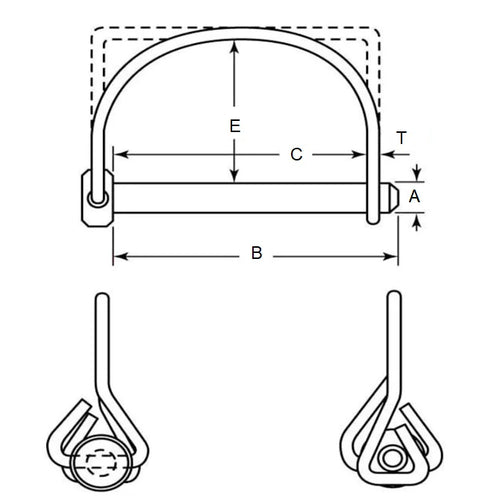

- Pin Diameter (A)
:
9.53
mm
- 0.051 / - 0.178
(Equiv. 0.375 in.) - Grip Length (C)
63.50
mm
+ 0.00 / - 6.35
(Equiv. 2.5 in.) - Wire Thickness (T)
3.0
mm
(Equiv. 0.118 in.) - Clearance To Wire (E) 38.1 mm
- Pin Length (B) 69.9 mm
- Weight Per Piece 63 g
- Finish Zinc Plated
- Material Carbon Steel Spring Wire Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor SNIP-375-2500S
- CLP575
- CLP-575
- SNIP3752500S
