BLP-095-0508-DR-S17 - Datasheet
MBA
Category Information

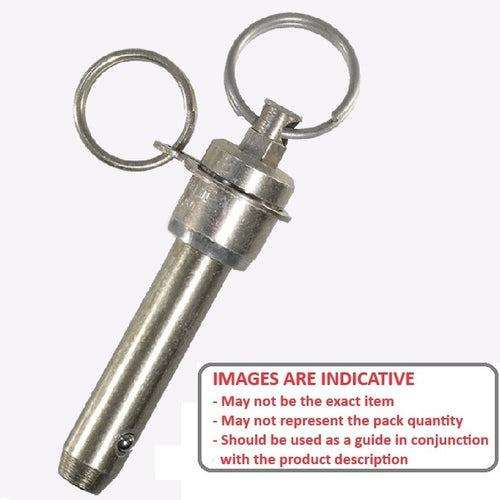

Pins - Ball Lock - Double Acting - Ring Handle Stainless SteelRing Handle Stainless Steel Double Acting Ball Lock Pins. 17-4 PH or PH15-7MO stainless steel spindle and shank. Self locking and positive locking. All components made from stainless steel.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- 300 Grade Stainless Handles
- 300 Grade Stainless Components
- 440C Stainless Balls

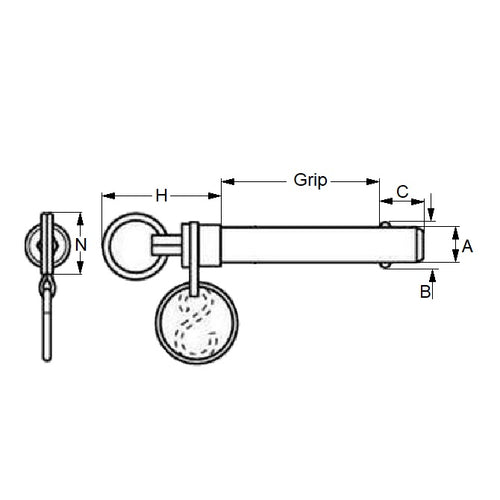

Product Data
- Nominal Diameter
:
9.53
mm
(Equiv. 0.375 in.) - Grip Length (B)
50.80
mm
(Equiv. 2 in.) - Pin Material Grade 17-4 PH Stainless
- Locking Ball to End (C) 9.27 mm
- Open Ball Distance (B) 11.18 mm
- Ring Height (H) 51.44 mm
- Head Width (N) 28.58 mm
- Pull Out Strength 260 Kg
- Max. Diameter 9.53 mm
- Min. Diameter 9.45 mm
- Material Stainless Steel 17-4 PH with Aluminium Handle
Product Compliance and Data
Additional Resources
Cross References
- DARS080
- DARS-080A
- DARS080A
