BLP-095-0381-TI-S17 - Datasheet
MBA
Category Information

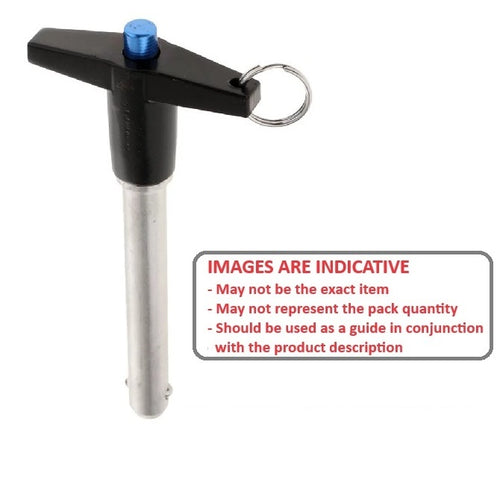

Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless SteelStainless Steel Industrial Tee Handle No Shoulder Ball Lock Pins. Quick release. Body and spindle 17-4 PH stainless steel. Ring and spring 17-7 MO stainless steel. Handle and collar are 300 grade stainless. Tee handle.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- 300 Grade Stainless Components
- 440C Stainless Balls
Product Data

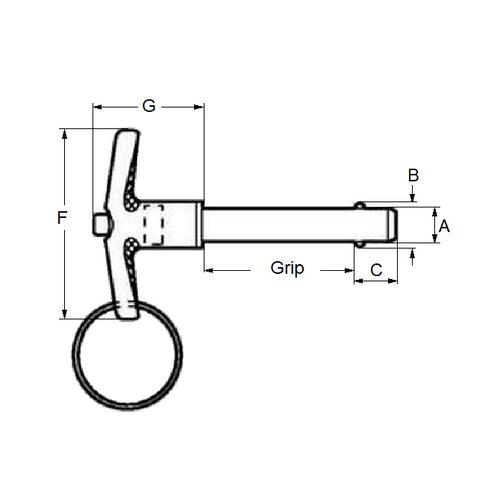

- Nominal Diameter
:
9.53
mm
(Equiv. 0.375 in.) - Grip Length (B)
38.10
mm
(Equiv. 1.5 in.) - Pin Material Grade 17-4 PH Stainless
- Locking Ball to End (C) 9.27 mm
- Open Ball Distance (B) 11.17 mm
- Handle Width (F) 52.45 mm
- Handle Length (G) 36.83 mm
- Pull Out Strength 256.00 Kg
- Calc. Double Shear Strength 9100 Kg
- Max. Diameter 9.48 mm
- Min. Diameter 9.44 mm
- Material Stainless Steel 17-4 PH
Product Compliance and Data
Additional Resources
Cross References
- 90293A312
- BLTS070
- BLTS-070
- BLTS070A
- BLTS-070A
