W0095-T-019-033-WC-CZ - Datasheet
MBA
Category Information

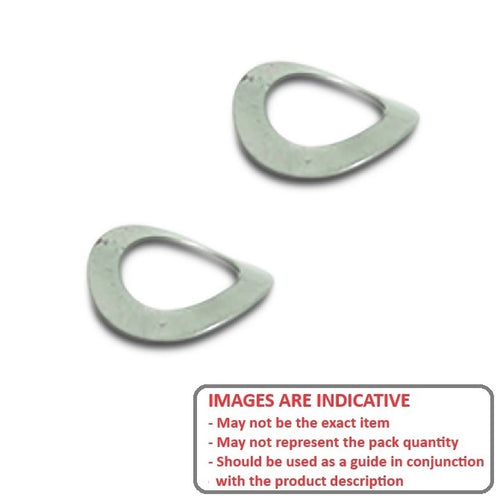

Washers - Spring - Curved - Carbon SteelCarbon Steel Curved Spring Washers. Carbon steel, curved selection.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.

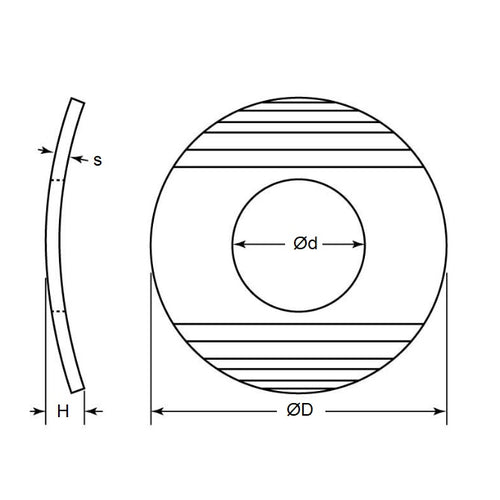

- ID and OD are long axis dimensions
Product Data
- Nominal Inside Diameter (B)
:
9.53
mm
+ 0.360 / - 0
(Equiv. 0.375 in.) - Nominal Outside Diameter (A)
18.67
mm
+/- 0.55
(Equiv. 0.735 in.) - Nom. Height (C)
3.28
mm
(Equiv. 0.129 in.) - Thickness (D) 0.28 mm
- Info Zinc Plated
- Type Curved DIN 137 Type A
- Nominal Screw Size 3/8
- Actual ID (Ref) 10.0 mm
- Material Carbon Spring Steel AISI C1075 Blued
Product Compliance and Data
Additional Resources
Cross References
- A7Q9-1W07311
- A7Q91W07311
- U375-0110
- U3750110
