HB250F-025 - Datasheet
MBA
Category Information

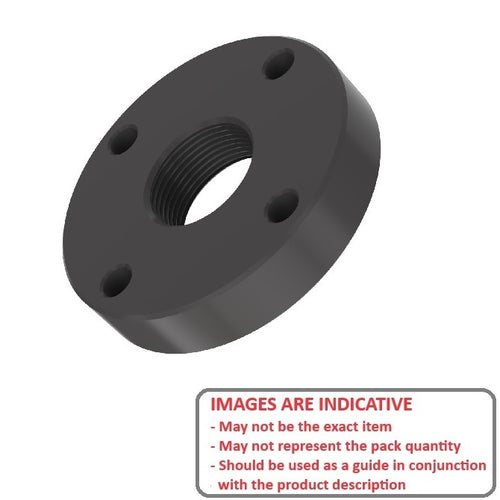

Leadscrew - Nut Flanges - For Acme SupernutsFor Acme Supernuts Nut Flanges Leadscrew. Flanges for Acme leadscrew thread supernuts metric and imperial
- An expanded range may be available on special order. Please enquire.
- MATERIAL - Aluminum 6062-T6
- These flanges are screwed onto the outer thread of the red leadscrew nuts
- This provides a mounting surface to enable location of the leadscrew nut on the surface to be moved
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Suitable Nut Mounting Thread : 9/16-18 UNF (14.29mm)

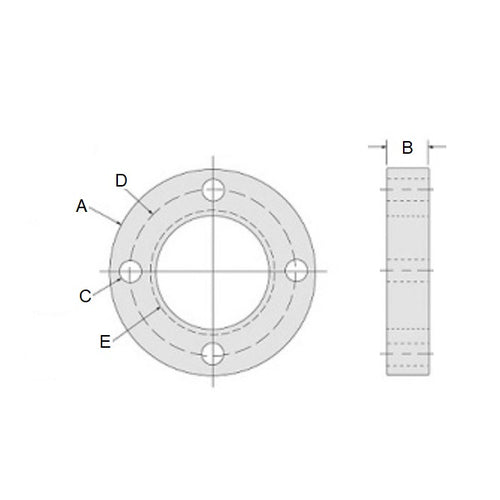

- Flange OD (A)
40.64
mm
(Equiv. 1.6 in.) - Flange Thickness (B)
6.350
mm
(Equiv. 0.25 in.) - Mounting Hole Diameter (D) 4.50 mm
- Mounting Hole Diameter (C) 31.5 mm
