CS-0914-2794-08-M - Datasheet
MBA
Category Information

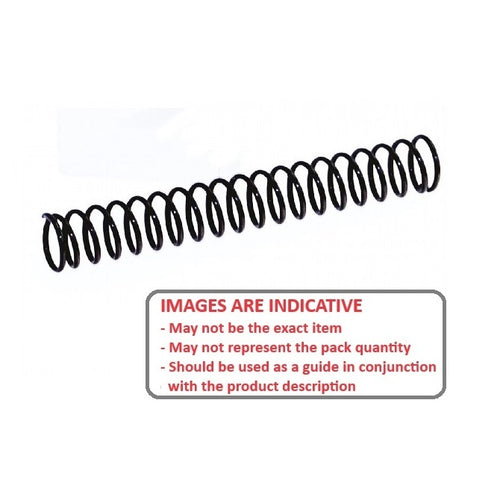

Springs - Compression - Music WireMusic Wire Compression Springs. Carbon spring steel selection. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
- Spring OD (D0)
:
9.14
mm
+/- 0.203
(Equiv. 0.36 in.) - Free Length (L0)
279.4
mm
+/- 7.62
(Equiv. 11 in.) - Wire Diameter (d)
0.79
mm
+/- 0.018
(Equiv. 0.031 in.) - Rate (P/f) 0.1 N/mm
- Solid Height (Sh) 70.1 mm
- Approx. ID 7.6 mm
- End Type Open
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- 9637K38
