PLI-P-080180-69-K-C - Datasheet
MBA
Category Information

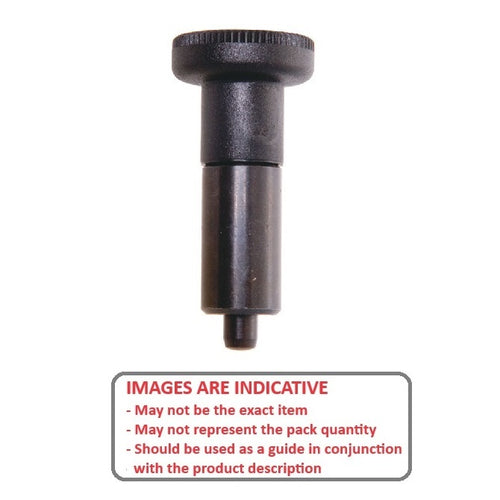

Plungers - Indexing Unthreaded Non Locking - Without KnobWithout Knob Indexing Unthreaded Non Locking Plungers. Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.
- For use where the application calls for the plunger to be welded or bonded.
- Body and pin are steel with black oxide finish.
Product Data

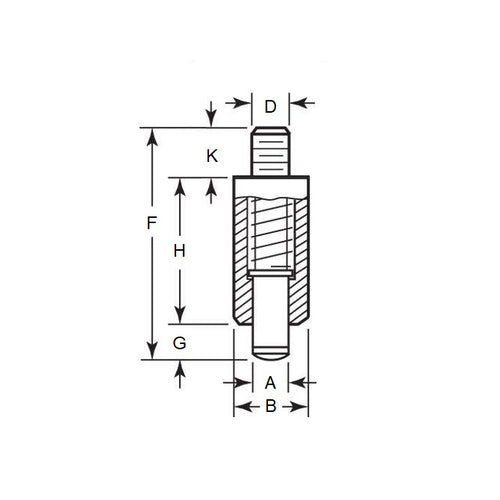

- Body Diameter (B)
:
18.00
mm
(Equiv. 0.709 in.) - Thread Length (K)
12.0
mm
(Equiv. 0.472 in.) - Initial End Force 5.4 N
- Final End Force 14.1 N
- Tip Diameter (A) 8.0 mm
- Nose Length (G) 8.0 mm
- Handle Length (G) 34.0 mm
- Body Length (H) 12.0
- Length (F) 69.0 mm
- Material Steel
