W0080-T-016-017-WC-CZ - Datasheet
MBA
Category Information

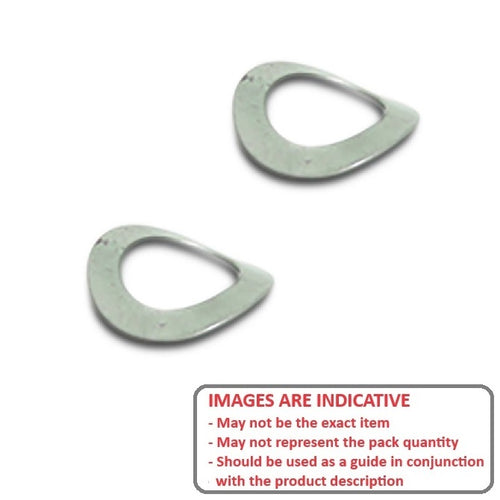

Washers - Spring - Curved - Carbon SteelCarbon Steel Curved Spring Washers. Carbon steel, curved selection.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.
- ID and OD are long axis dimensions
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

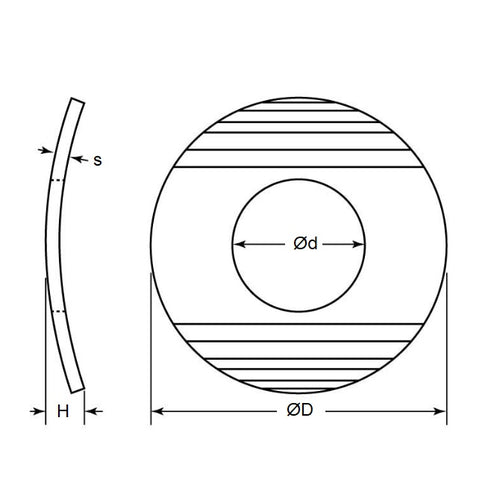

- Nominal Inside Diameter (B)
:
8.00
mm
+ 0.360 / - 0
(Equiv. 0.315 in.) - Nominal Outside Diameter (A)
15.00
mm
+/- 0.55
(Equiv. 0.591 in.) - Nom. Height (C)
1.70
mm
(Equiv. 0.067 in.) - Thickness (D) 0.50 mm
- Info Zinc Plated
- Type Curved DIN 137 Type A
- Nominal Screw Size M8, 5/16
- Actual ID (Ref) 8.4 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- MD0137MQA150
