PLIT-080-160-150-31L-LSH-C - Datasheet

MBA

Category Information

Plungers - Indexing - Locking - With Shoulder - Steel

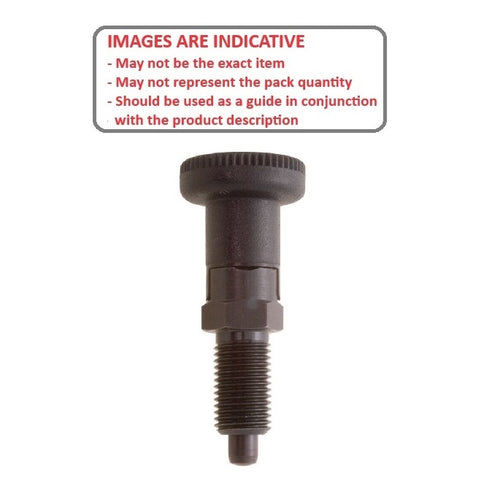

Steel With Shoulder Locking Indexing Plungers. Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.

  • Body and pin are steel with black oxide finish.

Product Data

  • Thread (B) : M16 Extra Fine (16x1.5mm)
  • Thread Length (E) 26.0 mm
    (Equiv. 1.024 in.)
  • Initial End Force 1.2 N
  • Final End Force 3.2 N
  • Tip Diameter (A) 8.0 mm
  • Tip Length (D) 7.0 mm
  • Nut Size (E) 21.9 mm
  • Nut Thickness (J) 8.0 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • WIP620
    • WIP-620
    View full details

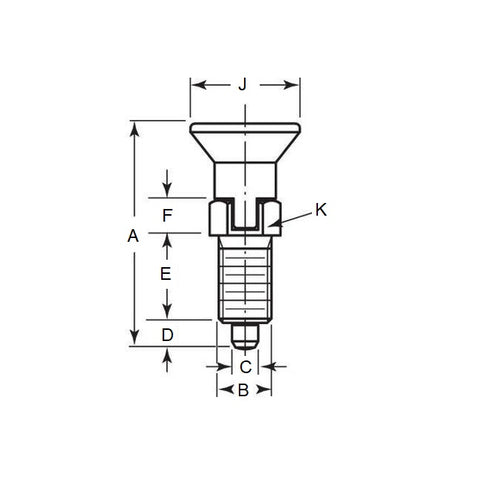

    PLIT-080-160-150-31L-LSH-CDiagramPLIT-080-160-150-31L-LSH-CImage
