PLIT-080-120-150-16-G-S3 - Datasheet

MBA

Category Information

Plungers - Indexing - Grip - Stainless - Without Nut

Without Nut Stainless Grip Indexing Plungers. Grip is held in a notch in the fully retracted position. In this position the locking pin does not project from the body at all.

    Product Data

    • Thread (B) : M12x1.5 (Fine)
    • Thread Length (F) 32.0 mm
      (Equiv. 1.26 in.)
    • Initial End Force 0.8 N
    • Final End Force 1.5 N
    • Tip Diameter (A) 8.0 mm
    • Tip Length (E) 10.0 mm
    • H 35.0
    • Handle Length (G) 40.0 mm
    • Material Stainless Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP825
      • KBP-825
      View full details

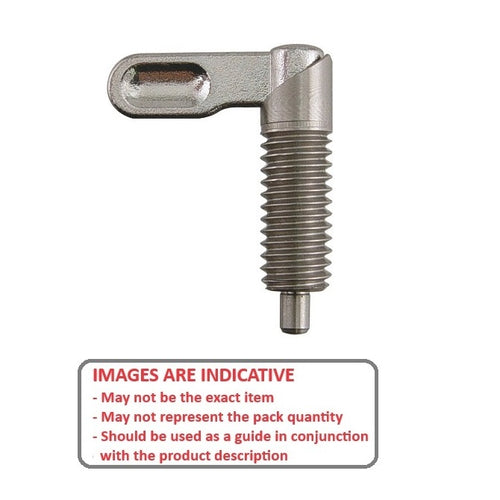

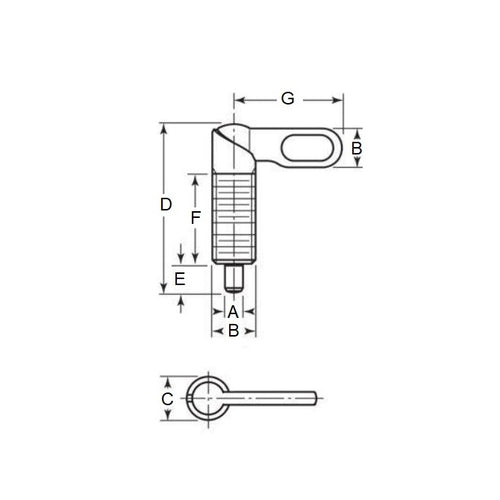

      PLIT-080-120-150-16-G-S3DiagramPLIT-080-120-150-16-G-S3Image
