PLIT-080-158C-16-G-S3 - Datasheet
MBA
Category Information

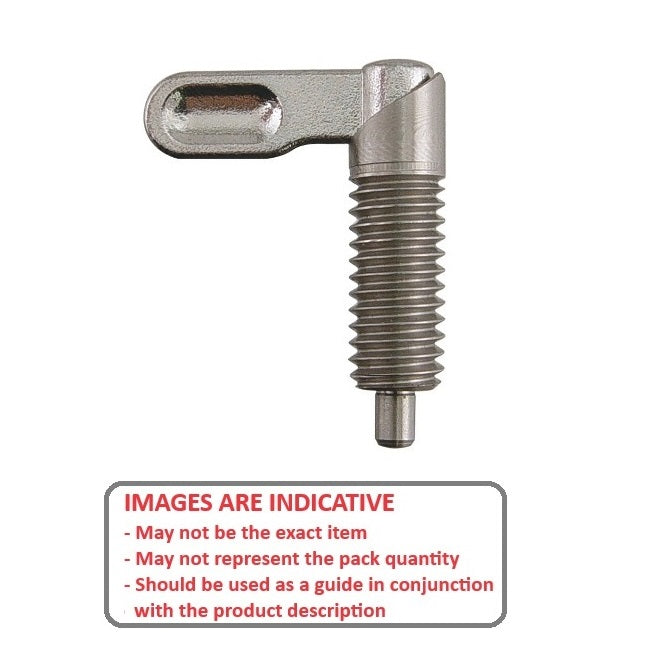

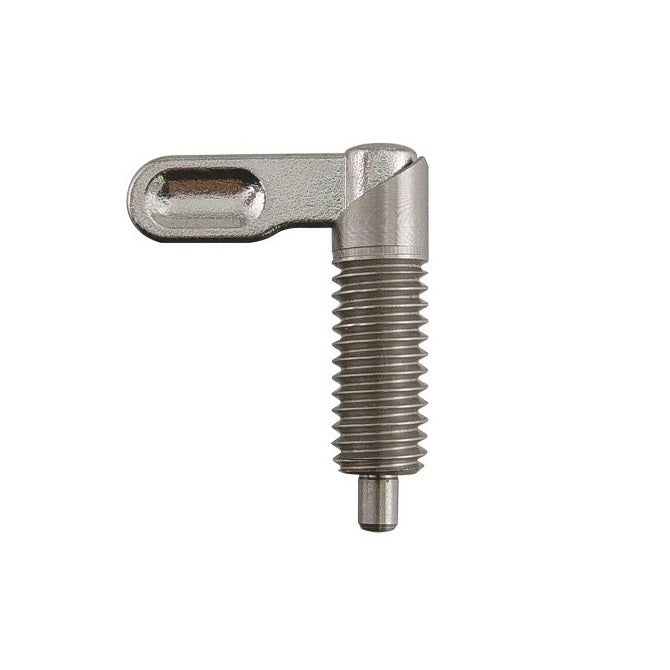

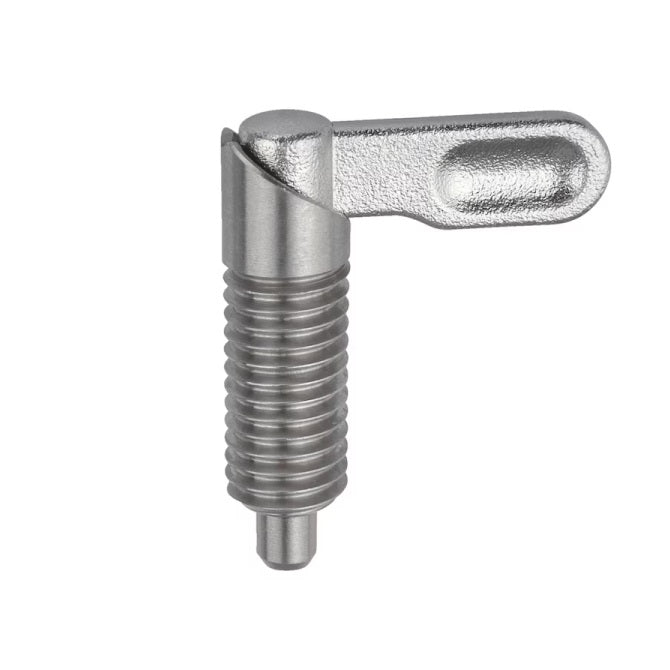

Plungers - Indexing - Grip - Stainless - Without NutWithout Nut Stainless Grip Indexing Plungers. Grip is held in a notch in the fully retracted position. In this position the locking pin does not project from the body at all.
Product Data
- Thread (B) : 5/8-11 UNC (15.88mm)
- Thread Length (F)
32.0
mm
(Equiv. 1.26 in.) - Initial End Force 0.8 N
- Final End Force 1.5 N
- Tip Diameter (A) 8.0 mm
- Tip Length (E) 10.0 mm
- H 23.8
- Handle Length (G) 40.0 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- KBP-779
- KBP779
