PLIT-080-127F-12-G-S3 - Datasheet

MBA

Category Information

Plungers - Indexing - Grip - Stainless - Without Nut

Without Nut Stainless Grip Indexing Plungers. Grip is held in a notch in the fully retracted position. In this position the locking pin does not project from the body at all.

    Product Data

    • Thread (B) : 1/2-20 UNF (12.7mm)
    • Thread Length (F) 25.0 mm
      (Equiv. 0.984 in.)
    • Initial End Force 0.8 N
    • Final End Force 1.5 N
    • Tip Diameter (A) 8.0 mm
    • Tip Length (E) 8.0 mm
    • H 19.1
    • Handle Length (G) 30.0 mm
    • Material Stainless Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP777
      • KBP-777
      View full details

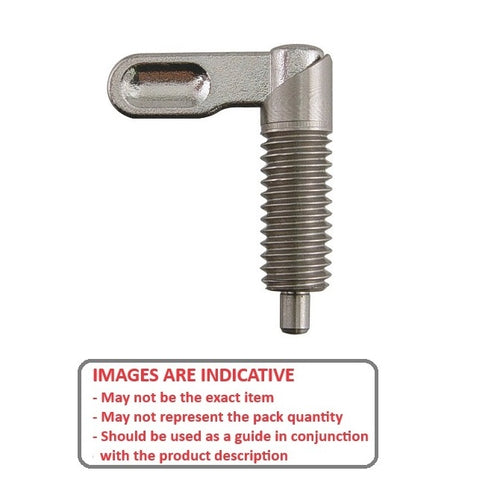

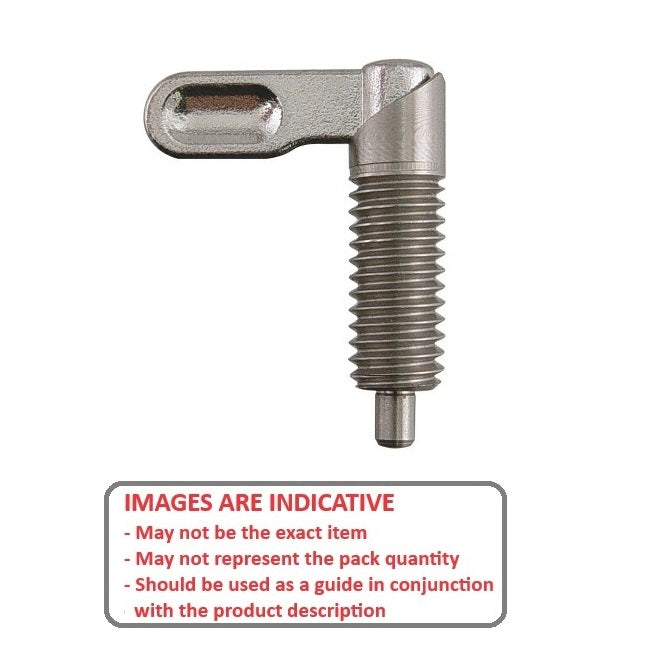

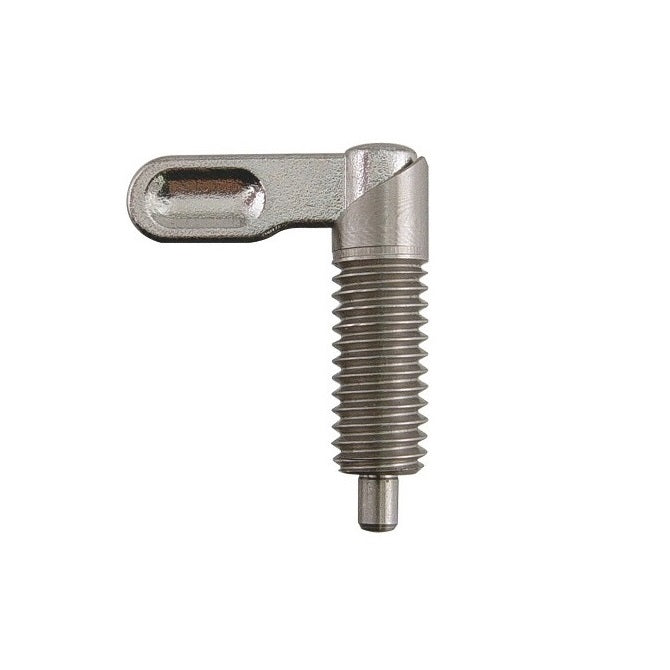

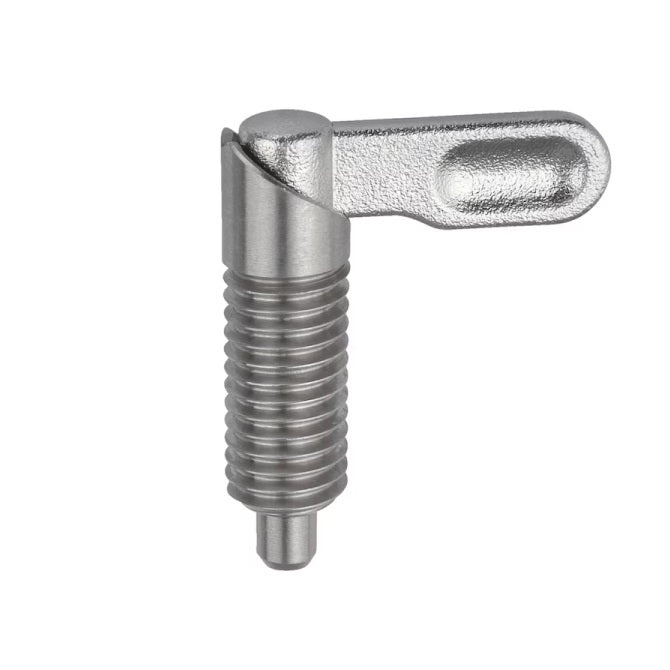

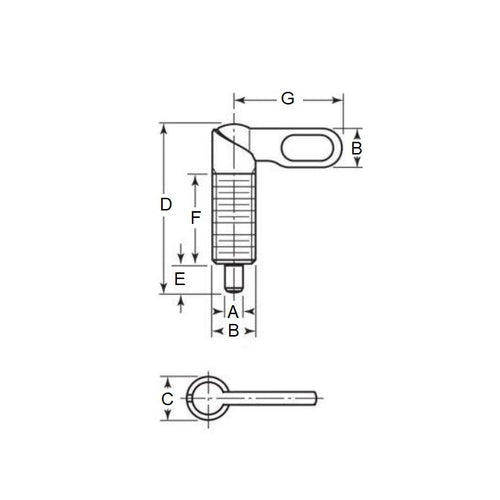

      PLIT-080-127F-12-G-S3DiagramPLIT-080-127F-12-G-S3Image
