CCE-08499-C - Datasheet
MBA
Category Information

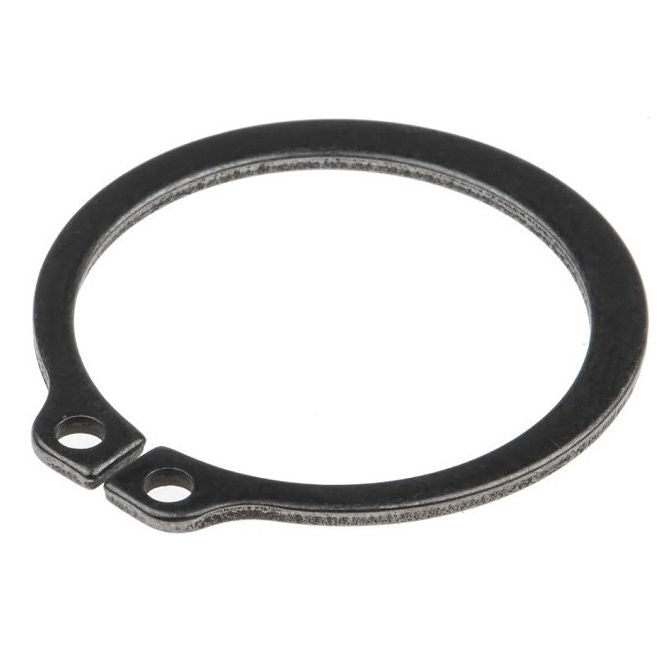

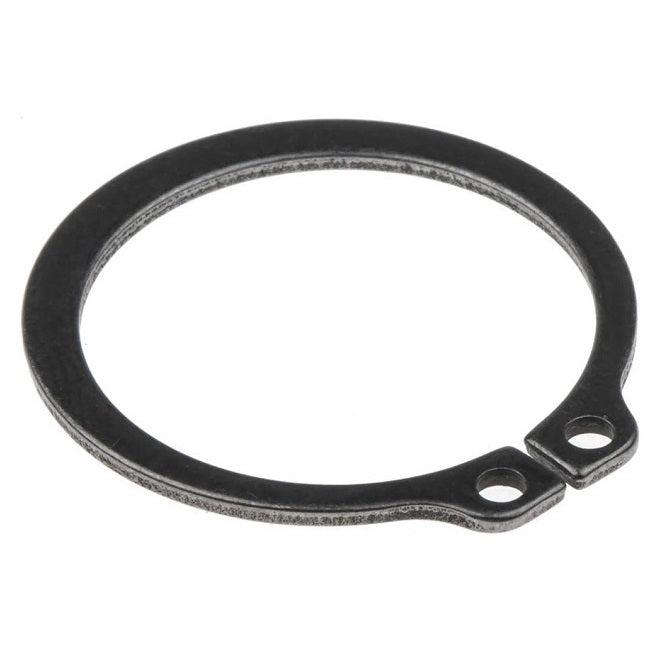

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds)
:
84.99
mm
(Equiv. 3.346 in.) - Clip Thickness (T)
2.36
mm
+/- 0.152
(Equiv. 0.093 in.) - Groove Dia. (Dg)
80.42
mm
+/- 0.076
(Equiv. 3.166 in.) - Approx. Loose Circlip ID (A) 78.54 mm
- Groove Width (W) 2.62 mm
- Clearance on Shaft (C1) 99.82 mm
- Clearance in Groove (C1) 95.00 mm
- Min. Lug Diameter (h) 3.12 mm
- Min. Extension (n) 7.09
- Standard MIL-16624
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor SH-334
- SH334
- N14000334APP
- N1400-0334APP
