Category Information

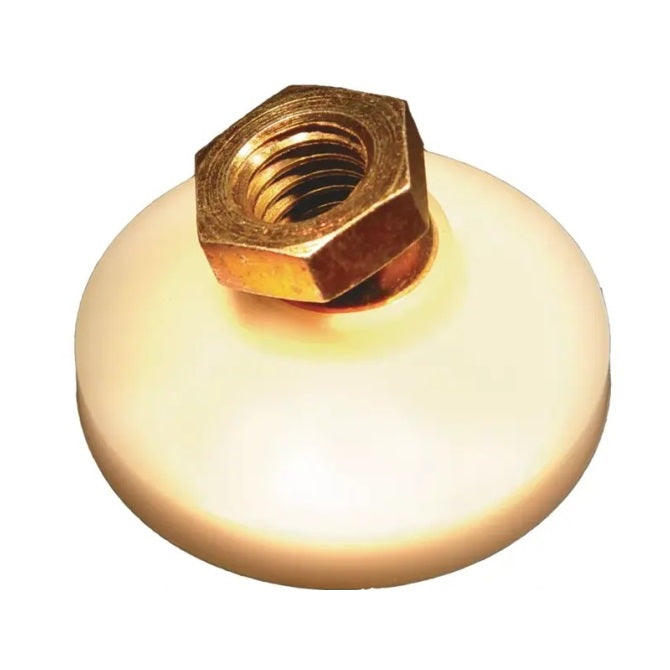

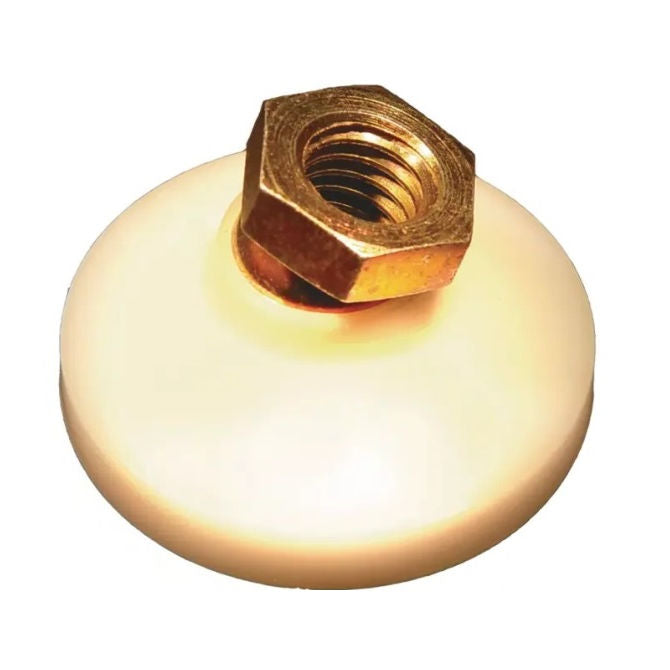

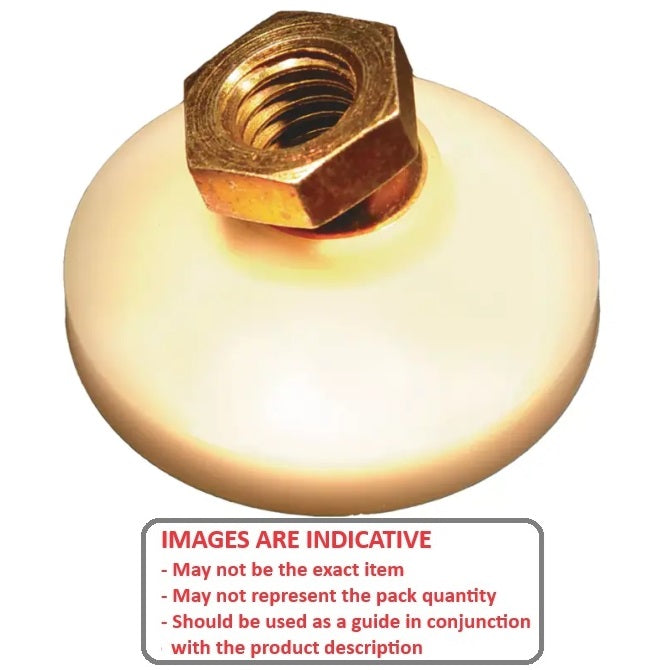

Mounts - Levelling Socket - Swivel - Gold Chromate - Acetal Base

Acetal Base Gold Chromate Swivel Levelling Socket Mounts. Levelling adjusters. 15^o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.

An expanded range may be available on special order. Please enquire.

Product Data

Thread Size (A) : 3/4-10 UNC (19.05mm)
Base Diameter (D) 76.2 mm
Foot Height (C) 38.1 mm
Min. Thread Depth 15.8 mm
Base Height (E) 12.70 mm
Load Rating 820 Kg
Finish Gold Chromate
Pad Material Delrin
Hex Flats (B) 26.99 mm
Material Steel

Country of Origin: US

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

Measuring Small Parts
Metalworking Resource Guide

Cross References

Reid Tool® LD-3
LD3
MSF0820191CGA
