TP-087-0572-S4-EE - Datasheet
MBA
Category Information

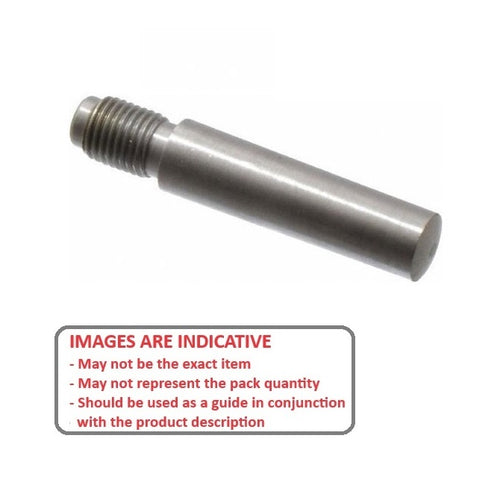

Pins - Taper Imperial - Extractable - External Thread - Stainless SteelStainless Steel External Thread Extractable Taper Imperial Pins. Imperial Sizes Tapered 1:48 (1/4 in. per foot). Standard sizes numbers 0 to 14.
- An expanded range may be available on special order. Please enquire.
- Threaded externally for easy extraction.
Product Data

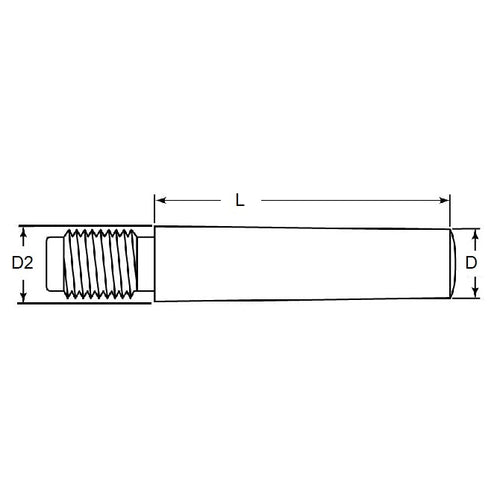

- Nom. Large End Diameter (D2)
:
8.73
mm
(Equiv. 0.344 in.) - Pin Length (L)
57.15
mm
(Equiv. 2.25 in.) - Nom. Small End Diameter (D)
7.54
mm
(Equiv. 0.297 in.) - Pin Number 6
- Thread Size 5/16 UNF
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 92284A346
- NoCor TPTS-06-2250
- TPTS062250
