TPM-0800-04000-EE - Datasheet
MBA
Category Information

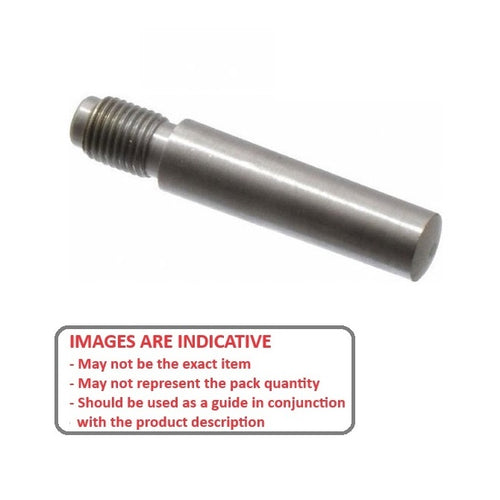

Pins - Taper Metric - Extractable - External ThreadExternal Thread Extractable Taper Metric Pins. Metric Sizes Tapered 1:50 and threaded externally for easy extraction.
- An expanded range may be available on special order. Please enquire.
- DIN 7977.
Product Data

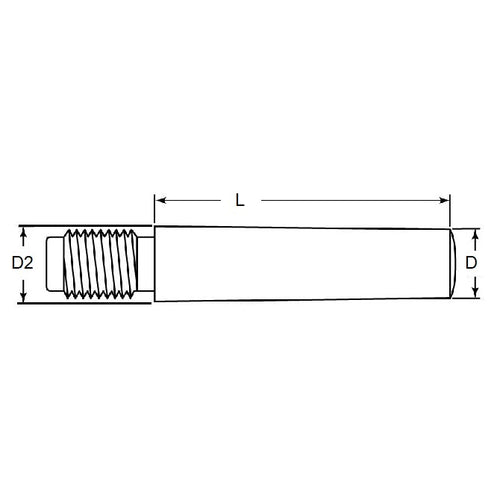

- Nom. Small End Diameter (D)
:
8.00
mm
(Equiv. 0.315 in.) - Overall Length (L)
40.00
mm
(Equiv. 1.575 in.) - Nom. Large End Diameter (D2)
8.80
mm
(Equiv. 0.346 in.) - Thread Size M8
- Standard DIN7977
- Material Carbon Steel
