PLST-042C-111-S3-021 - Datasheet
MBA
Category Information

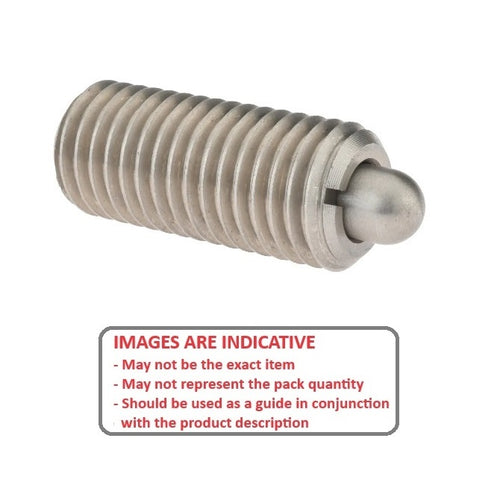

Plungers - Spring - No Handle - Stainless - Stainless NoseStainless Nose Stainless No Handle Spring Plungers. 303 Stainless Steel.
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

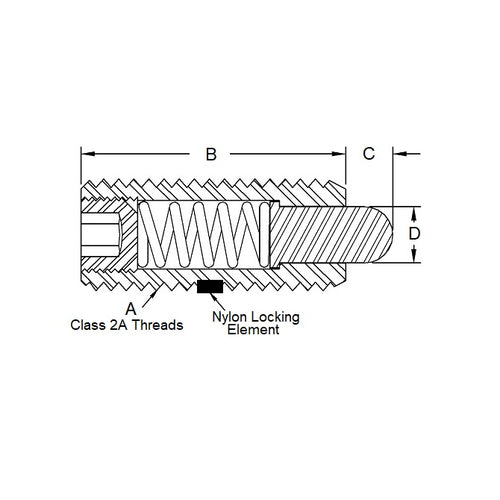

Product Data
- Thread Size (A) : 8-32 UNC (4.17mm)
- Thread Length (B)
11.1
mm
(Equiv. 0.437 in.) - Initial Pressure (F1) 6.7 N
- Final Pressure (F2) 21.1 N
- Tip Diameter (D) 1.8 mm
- Tip Length (C) 1.3 mm
- Body Length (B) 11.1 mm
- Drive Slotted
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 84985A43
- K1AS
- K-1AS
