SC042C-022-C-SK-CZ - Datasheet
Brighton Best
Category Information

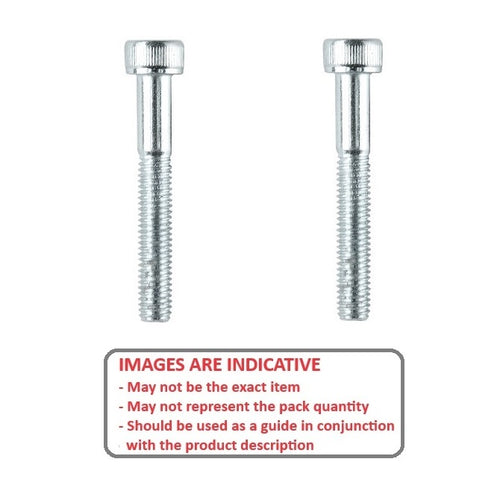

Screws - Socket Cap - Zinc PlatedZinc Plated Socket Cap Screws. UNC - UNF - METRIC - Alloy Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : 8-32 UNC (4.17mm)
- Thread Length (L)
22.2
mm
(Equiv. 0.874 in.) - Material Zinc Plated Steel
- Head Length (B Max.) 4.2 mm
- Head Diameter (A Max.) 6.9 mm
- Drive Depth (E) 1.96 mm
- Shank Diameter (C) 4.03 - 4.17 mm
- Hex Key (D) 3.57 (9/64) mm
- Min thread Length 22.2 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 872087
- 90128A198
