PLST-042C-159-S3HX-032 - Datasheet
MBA
Category Information

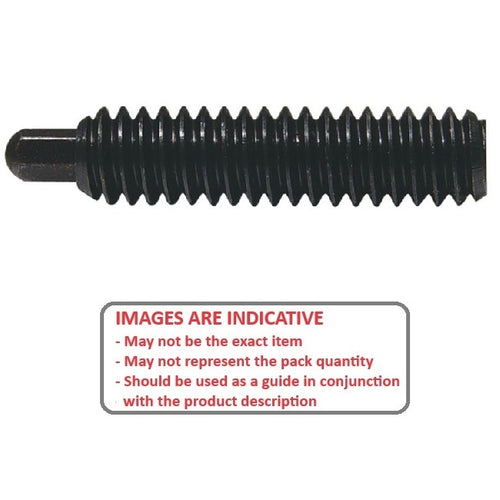

Plungers - Spring - No Handle - Stainless - Hex NoseHex Nose Stainless No Handle Spring Plungers. Stainless Steel body and steel hex nose
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data

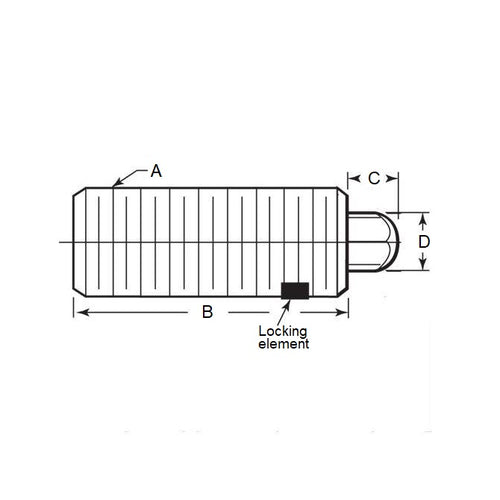

- Thread Size (A) : 8-32 UNC (4.17mm)
- Thread Length (B)
15.9
mm
(Equiv. 0.626 in.) - Initial Pressure (F1) 12.0 N
- Final Pressure (F2) 32.5 N
- Tip Diameter (D) 1.8 mm
- Tip Length (C) 2.4 mm
- Body Length (B) 15.9 mm
- Drive Hex
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 8476A34
- SLS-2
- SLS2
- PLST042C159S3032
- SSPH50
- SSPH-50
