PLST-042C-159-C-032A - Datasheet
MBA
Category Information

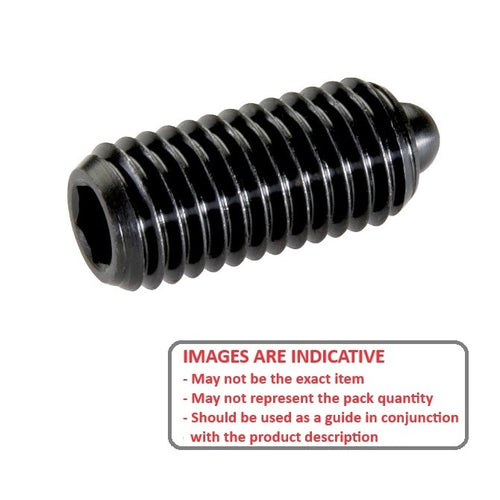

Plungers - Spring - No Handle - Steel - Standard NoseStandard Nose Steel No Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
Product Data

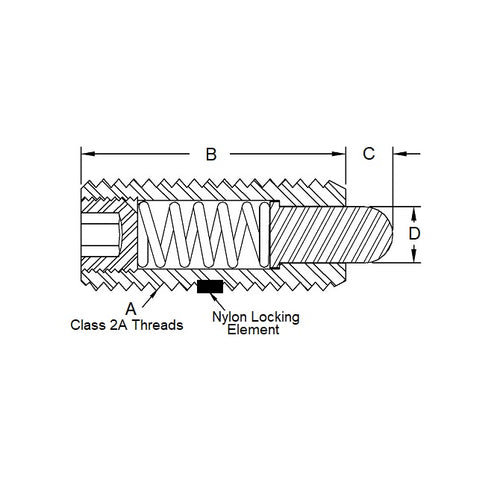

- Thread Size (A) : 8-32 UNC (4.17mm)
- Thread Length (B)
15.9
mm
(Equiv. 0.626 in.) - Initial Pressure (F1) 12.0 N
- Final Pressure (F2) 32.5 N
- Tip Diameter (D) 1.8 mm
- Tip Length 2.4 mm
- Body Length (B) 15.9 mm
- Drive Hex
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- SL2
- SL-2
