IN-RIV-042C-033-R - Datasheet

MBA

Category Information

Inserts - Rivet Nuts - Klik - Ribbed

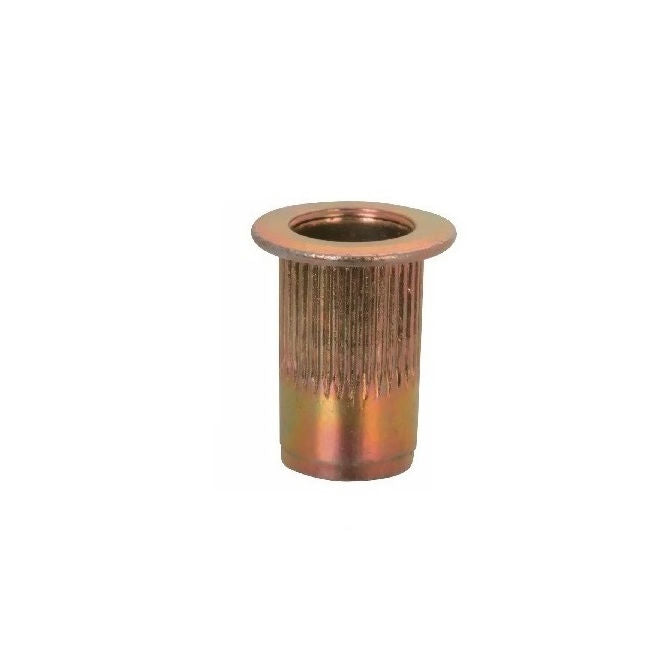

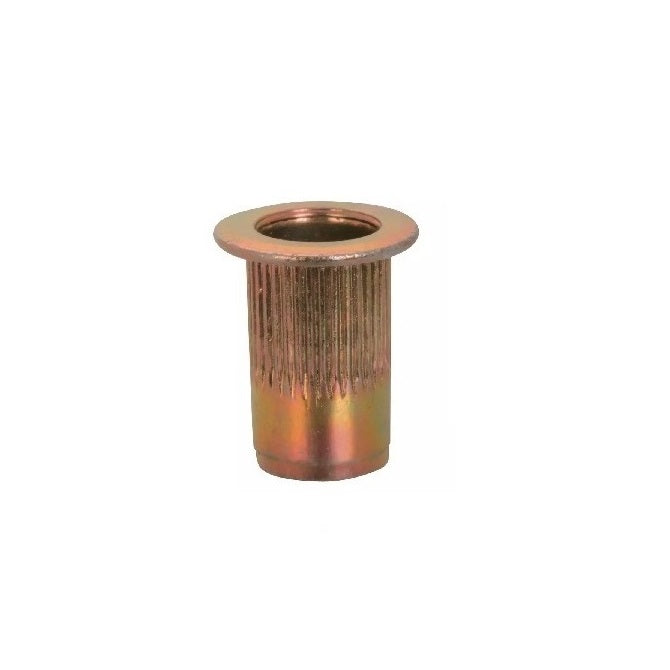

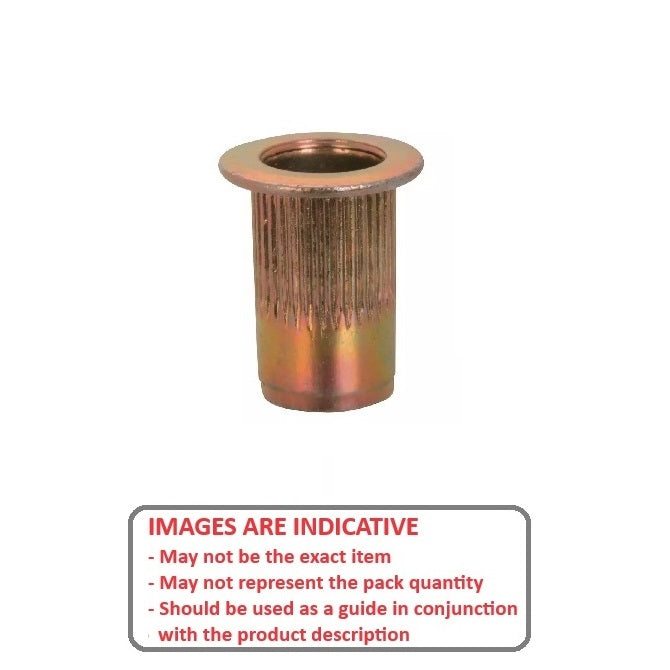

Ribbed Klik Rivet Nuts Inserts. Individual Inserts for use with the Klik Thread Setter Tool

  • These blind threaded inserts offer strong torque and pull out characteristics. Especially effective in sheet metal and other thin material.
  • Insert is placed into the hole in the parent material and crimped up with the installation tool.
  • Installs from one side - no tapping required. Installs almost flush eliminating the need for countersinking.
  • Made from plated steel.

Product Data

  • Internal Thread : 8-32 UNC (4.17mm)
  • Drill Hole Size 6.75 mm
    (Equiv. 0.266 in.)
  • Grip Range 2.03 - 3.32 mm
    (Equiv. 0.08 in.)

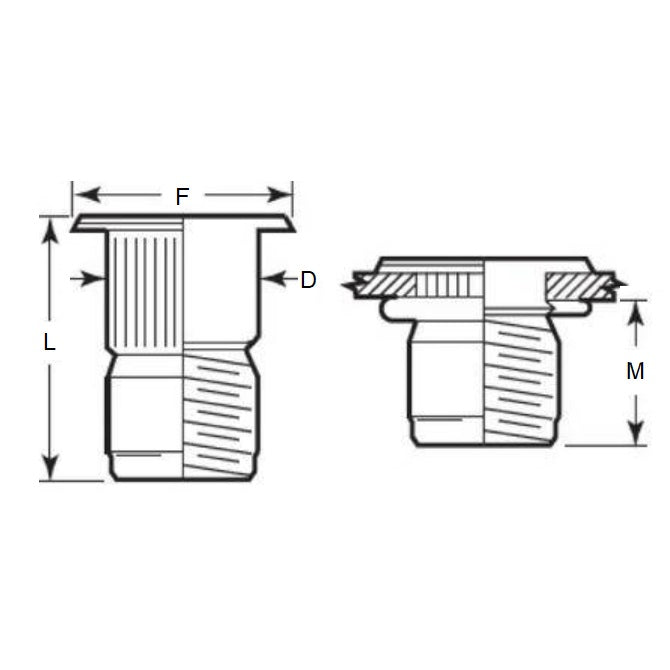

  • Body Diameter (D) 6.73 mm
  • Flange Diameter (F) 9.52 mm
  • L 12.294 mm
  • M 6.985 mm
  • 2.03 - 3.32
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 95105A123
  • ALC47321
  • ALC-47321
