IN-TP-042C-10-WSL - Datasheet
MBA
Category Information

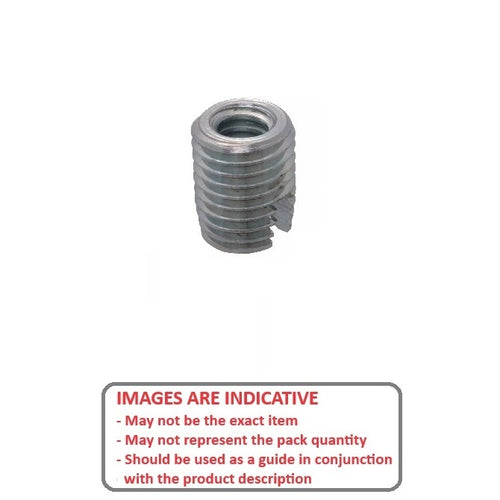

Inserts - Self Tapping - For Wood - Slotted Drive - StandardStandard Slotted Drive For Wood Self Tapping Inserts. Threaded inserts are screwed into preformed or predrilled holes and cut own threads into the wall of permanent installations.
- Provides a strong wear and vibration resistant thread.
- Low volumes can be installed by winding in with a bolt through the threaded centre. Large volumes can be installed with hand installation tools (Sold Seperately)
- Hole sizes are reference only. Can variey on batchs. Optimum hole size is to be determinded through experimentation.
- A 60o countersink is required for flush mounting.
- Use with soft plastics, hard and soft wood, particle board
Product Data

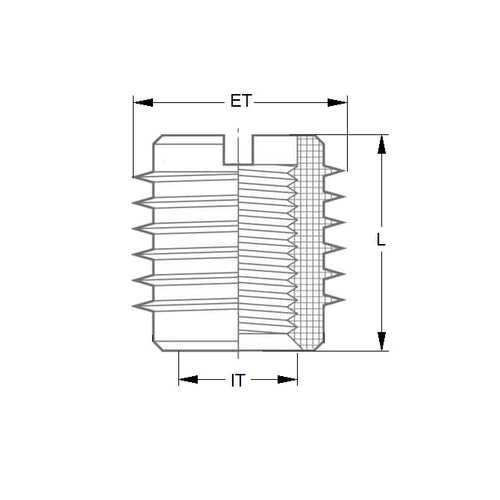

- Internal Thread : 8-32 UNC (4.17mm)
- Rec. Hole Diameter
5.11
mm
(Equiv. 0.201 in.) - Length (L)
10.0
mm
(Equiv. 0.394 in.) - Outside Diameter (B) 7.010 mm
- Required Hole Depth 13.005 mm
- Hardwood and Plastic Hole Size 5.21 mm
- Material to be used in Hard and Soft Woods, Particle board, Soft Plastics
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- INTP0417C100WS
