REF-080-L-CB-N - Datasheet
MBA
Category Information

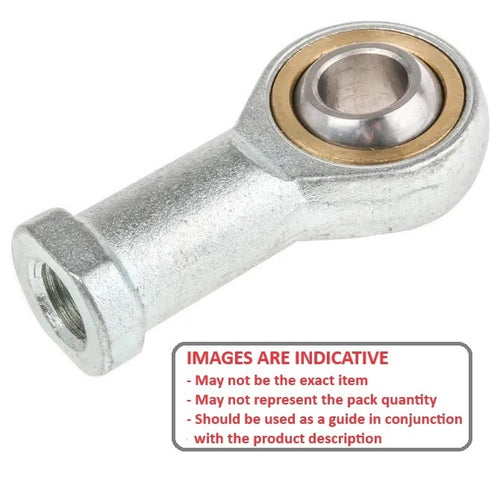

Rod Ends - Female - Steel - Plain - Bronze Lined - Ferrobal Narrow HeadFerrobal Narrow Head Bronze Lined Plain Steel Female Rod Ends. Bearing Steel, hardened, ground and chromium plated Inner ring, Heavy duty bronze with embedded bronze - PTFE fabric Outter ring. Steel/Bronze - PTFE fabric Sliding Combination. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Maintenance free and no lubrication necessary.

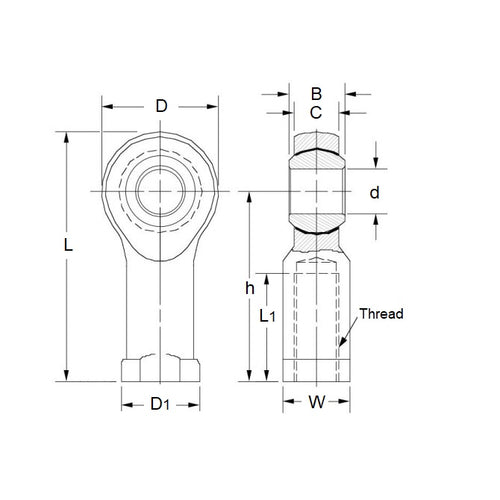

Product Data
- Eye Size
:
8
mm
(Equiv. 0.315 in.) - Overall Length
48.00
mm
(Equiv. 1.89 in.) - Thread Size M8x1.25 Left
- Thread Length 15.00 mm
- Head Width 6.00 mm
- Eye Width 8.00 mm
- Head Diameter 24.00 mm
- Centre Height 36.00 mm
- Grease Nipple No
- Body Width / Flange Width 12.50 / 16.00 mm
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- 6072K52-LEFT
- 6072K52LEFT
