CNG-00800-C - Datasheet
MBA
Category Information

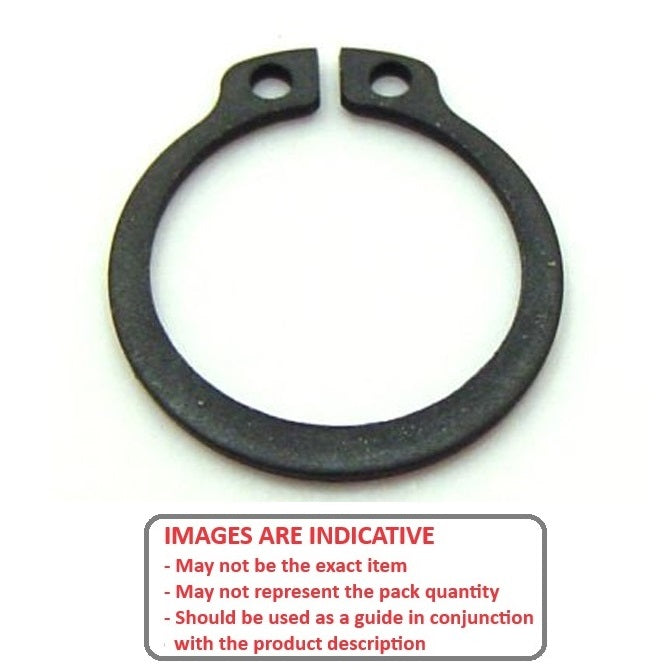

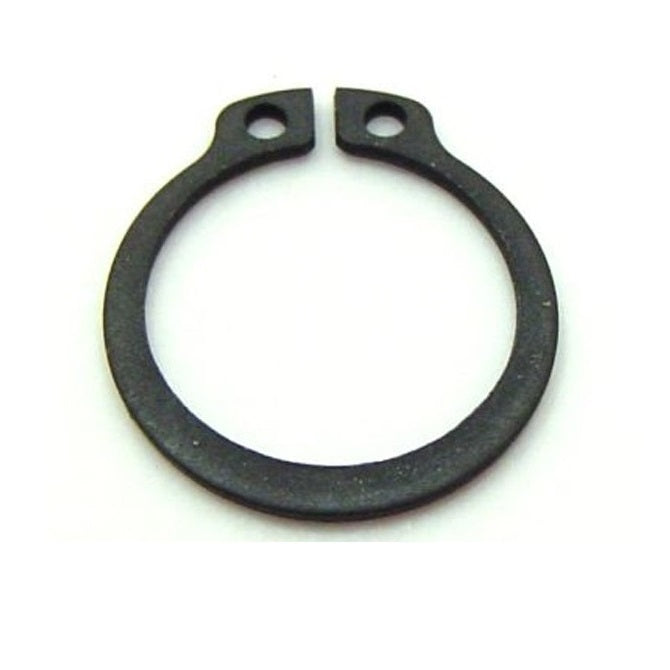

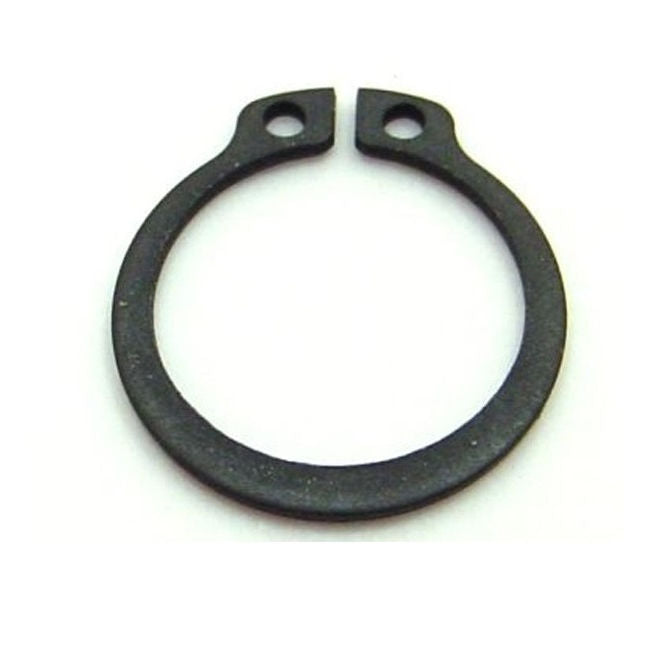

Retaining Rings - External - Circlips - GroovelessGrooveless Circlips External Retaining Rings. Includes MIL-R-21248/MS 90707 - Styles M1440 / Ellison GR / Seeger G and GA. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Reusable tapered section rings for grooveless shafts like plastics, tubes or castings.
- Can be used where adjustable ring placement is desired - like progressively tightening a compression spring.
Product Data

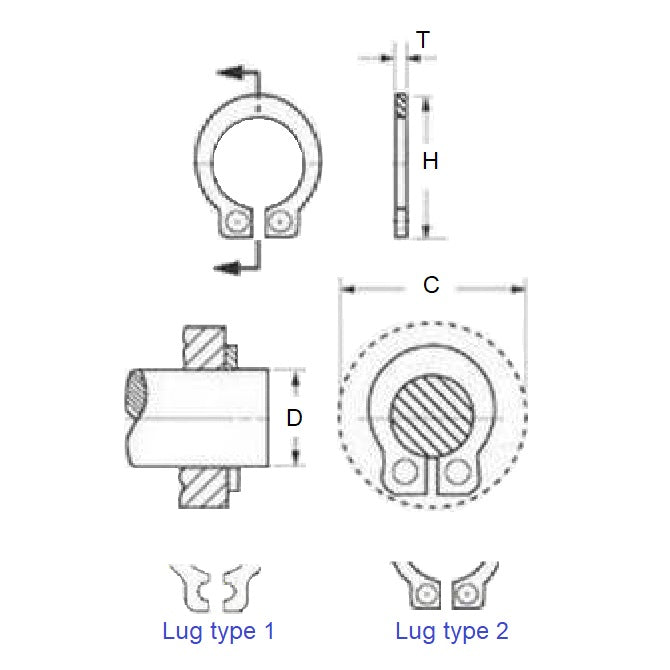

- Shaft Diameter (Ds)
:
8.00
mm
+/- 0.08
(Equiv. 0.315 in.) - Clip Thickness (T)
1.00
mm
(Equiv. 0.039 in.) - Approx. Loose Circlip ID (A) 7.70 mm
- Assemb. Clearance on Shaft (C) 17.30
- Allowable Load 196 N
- Lug Type 1 (Open) mm
- Tool PRS-ZGG1
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- ATA 140-408300
- NoCor DSHX-008
- DSHX008
- 140408300
- 1440-8
- 14408
- D14408
- D1440-8
- M1440-0080
- M14400080
