CCE-07938-S15 - Datasheet

MBA

Category Information

Retaining Rings - External - Circlips - Standard - Stainless Steel

Stainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • PH15-7 Mo Stainless Steel.

Product Data

  • Shaft Diameter (Ds) : 79.38 mm
    (Equiv. 3.125 in.)
  • Clip Thickness (T) 2.36 mm +/- 0.152
    (Equiv. 0.093 in.)
  • Groove Dia. (Dg) 75.11 mm +/- 0.076
    (Equiv. 2.957 in.)
  • Approx. Loose Circlip ID (A) 73.50 mm
  • Groove Width (W) 2.60 mm
  • Standard MIL-16624
  • Material Stainless Steel Grade PH15-7 Mo
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 91590A190
  • NoCor SH-312-SS
  • SH312SS
  • N14000312KSF
  • N1400-0312KSF
View full details

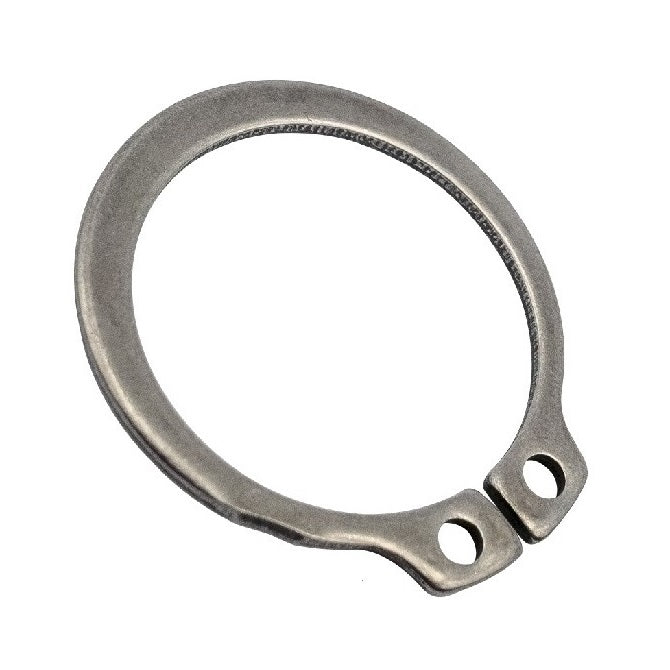

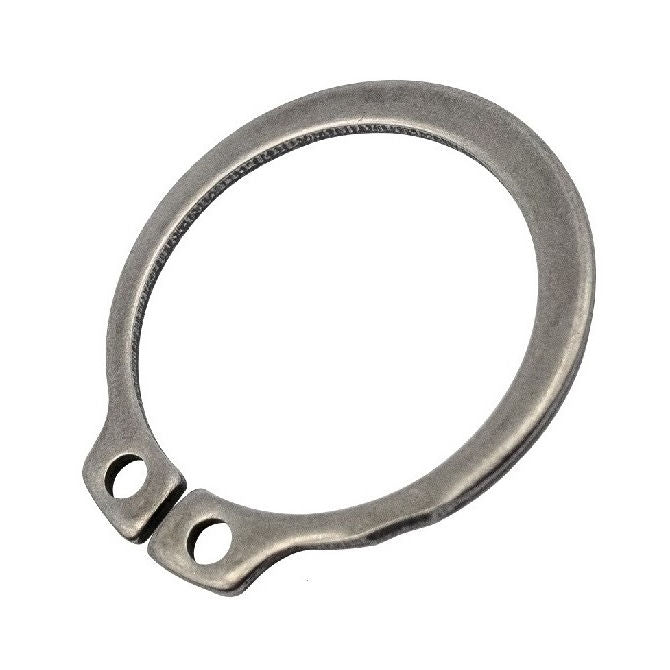

CCE-07938-S15DiagramCCE-07938-S15Image
