PBC-755RS - Datasheet

MBA

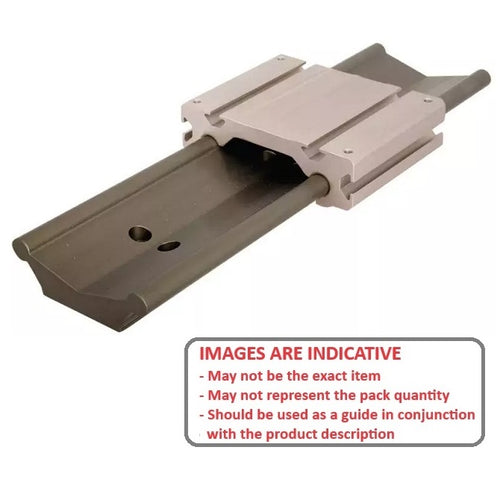

Guide System Two Piece Linear. Using Frelon Gold plain bearing technology. Rail and carriage are made from 6063-T6 aluminium and come as a set.

Rails are ceramic coated to resist corrosion and repel weld spatter and contaminants.
Smooth running. Dampens vibration. Guide has slots for T nuts or bolts. Two component system allows for easier installation than traditional rail systems.

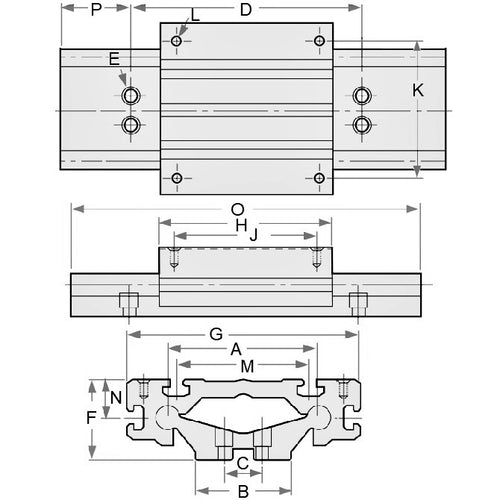

Rail Top Width (A/B) : 74.930 / 50.800 mm
C 19.050 mm
Rail Bolt Centres (D) 101.600 mm
Rail Height (F) 41.275 mm
Carriage Width (G) 116.840 mm
Carriage Length (H) 88.900 mm
Carriage Bolt Centre Length (J 76.200 mm
Carriage Bolt Centre Width (K) 101.600 mm
Overall Length (O) 609.60 mm
P 50.80 mm
Bolt Size (L) 10-32 UNF (4.763mm)
M 66.040 mm
Material Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating

Country of Origin: US
